Morbipack Automatic shrink wrapping machine for soft pillow bags or flowrapped packs

Morbipack

Automatic shrink wrapping machine incorporating infeed with vertical stacking system. Ideally suited for soft pillow bags or flowrapped packs such as (pillow pack, wet wipes and so on).

Morbipack
Suited for soft pillow bags or flow-wrapped packs
parallel or 90° infeed
Speed up to 40 stacking/min and 20 packs/min

DETAILS

Version with High speed infeed suitable to receive up to 120 products/min.

Stacking system with double hopper in order to get the right alignment of the products. Double hopper enables continuous stacking of product whilst transferring collation onto blank.

Pneumatic version for handling up to 70 bags per minute.

‘’Major’’ version for large dimensions bags (5 kg/10 kg).

Double infeed version receives products coming from 2 vertical filler and can handle up to 80 bags per minute on each infeed.

Wrapping system with options a) two reels to give ‘’bullseye’’style wrap or b) for a completely enclosed pack a folding frame is used with lateral seal underneath the pack.

option & data sheet

Changeover by servomotors

Automatic changeover by servomotors

Technical features

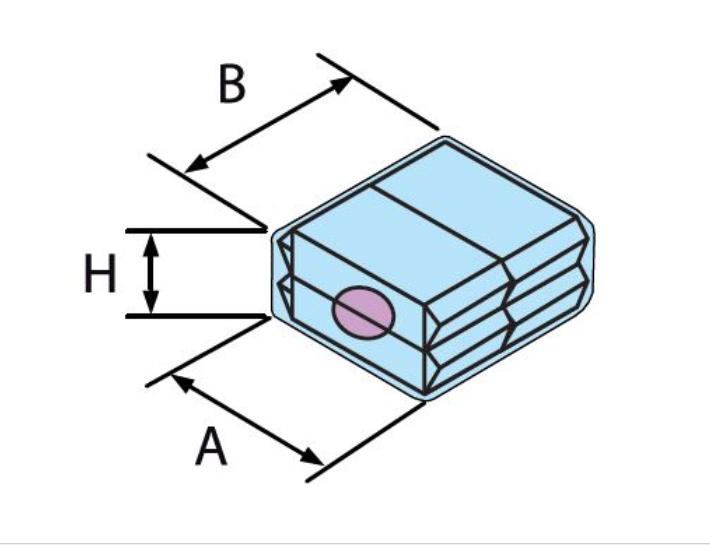

Max pack mm A=350 mm
B= 620 mm
H= 300 mm
Power requirement kW 20
Air consumption Nl/min 150
Pneumatic   Camozzi
PLC   Siemens S7
Display   Siemens
Infeed speed   70
Stacker speed   40
Output   33/40

Technical features

Max pack mm A=350 mm
B= 620 mm
H= 300 mm
Power requirement kW 21,5
Air consumption Nl/min 150
Pneumatic   Camozzi
PLC   Siemens S7
Display   Siemens
Infeed speed   120
Stacker speed   40
Output   33/40

Technical features

Max pack mm A=500 mm
B= 600 mm
H= 500 mm
Power requirement kW 27,5
Air consumption Nl/min 150
Pneumatic   Camozzi
PLC   Siemens S7
Display   Siemens
Infeed speed   20
Stacker speed   20
Output   10

Technical features

Max pack mm A=350 mm
B= 620 mm
H= 300 mm
Power requirement kW 20
Air consumption Nl/min 150
Pneumatic   Camozzi
PLC   Siemens S7
Display   Siemens
Infeed speed   70-70
Stacker speed   33/33
Output   33/33
