packing

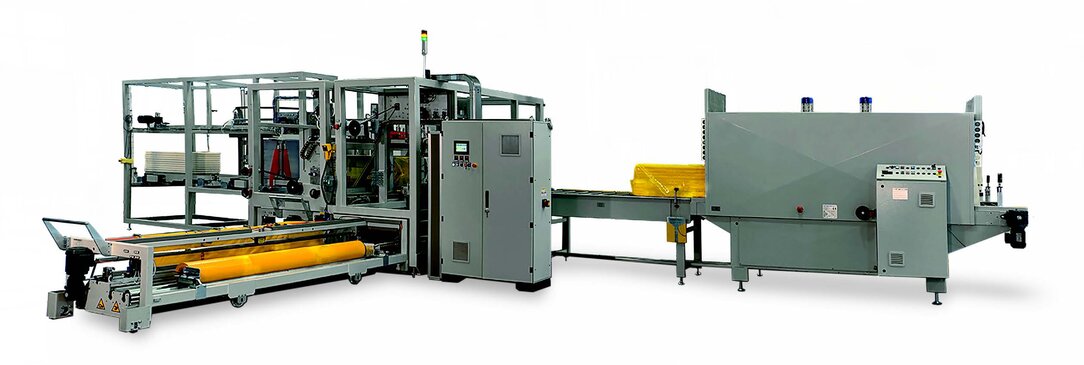

Totalpack 用于完全封闭产品 6 面的机器

用于通过横向和纵向密封对箱、面板、柜、镶木地板、型材、框架等产品进行 6 面完全封闭的机器。得益于包装的 6 面封闭，可为面板、型材、镶木地板和类似产品提供最佳保护和遮盖。包装的外观精美且正常。

由生产

联系我们

INTEGRABLE WITH PACKS STACKER AND END OF LINE SOLUTIONS

OUTPUT CAPACITY UP TO 10 P/MIN

BRUSHLESS MOTORS

HIGHEST AUTOMATION LEVELS AVAILABLE

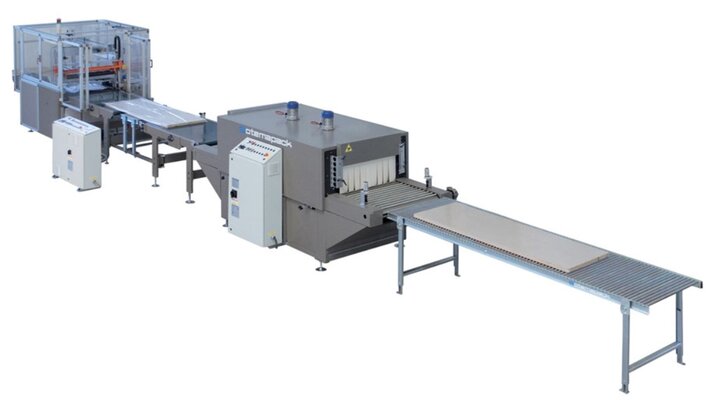

Totalpack 50/80

用于通过横向和纵向密封对箱、面板、柜、镶木地板、型材、框架等产品进行 6 面完全封闭的机器。

得益于包装的 6 面封闭，可为面板、型材、镶木地板和类似产品提供最佳保护和遮盖。包装的外观精美且正常。

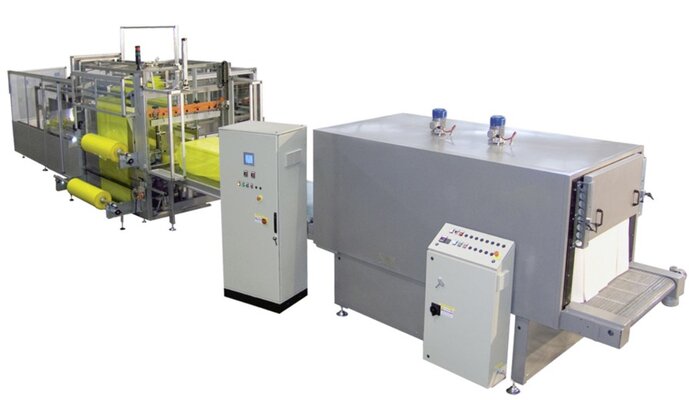

Totalpack 130

用于通过横向和纵向密封对箱、面板、柜、镶木地板、型材、框架等产品进行 6 面完全封闭的机器。

得益于包装的 6 面封闭，可为面板、型材、镶木地板和类似产品提供最佳保护和遮盖。包装的外观精美且正常。

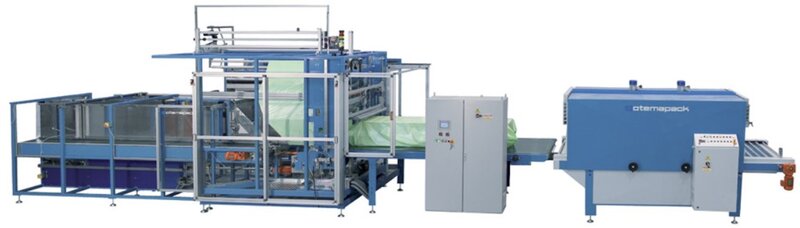

Totalpack 150

用于通过侧向密封单元对箱、面板、柜、镶木地板、型材、框架等产品进行 6 面完全封闭的机器。

适用于大型产品的全自动全封闭装袋系统

好处

DIFFERENT CONFIGURATIONS

Available by ½ tube film reel & flat film reel style. Specific configurations for panels industry and thermo formed trays industry

MODULAR DESIGN

Prepared for quick upgrades setup

MAINTENANCE FRIENDLY

Easy access for cleaning and maintenance operations

QUICK & FLEXIBLE SET UP

Quick and easy replacement of most components

作业流程

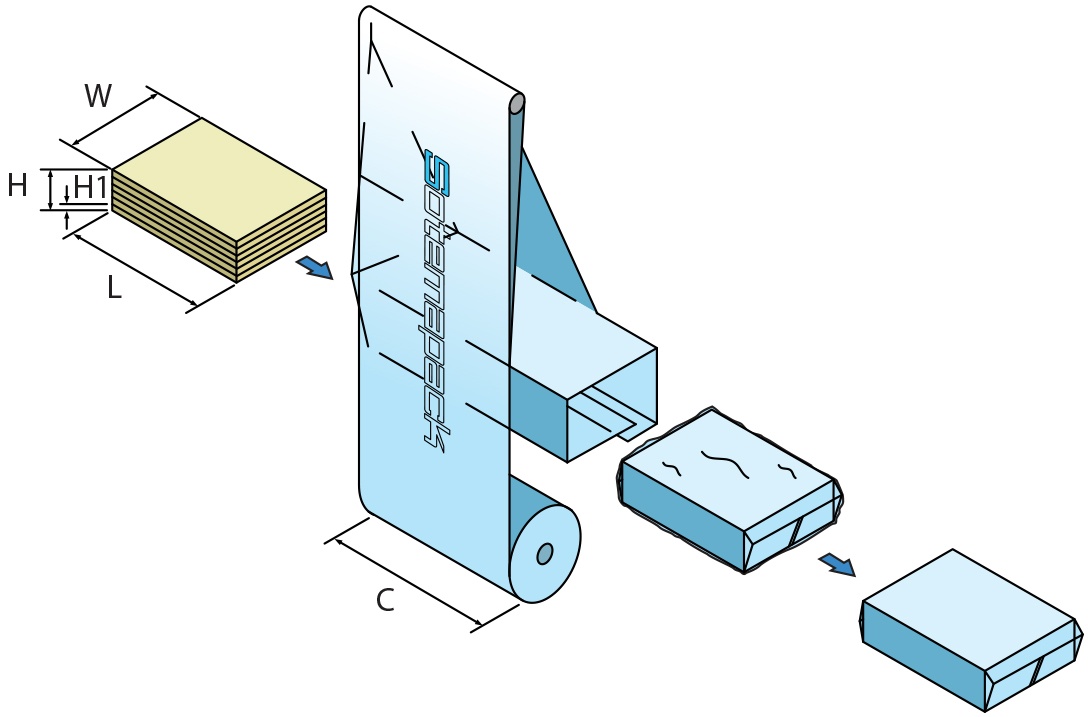

Configuration by ½ tube film reel

Configuration with spool flat leaf

概览

Totalpack guarantees waterproof optimal protection and covering of panels, profiles, parquet and similar products thanks to 6 sides closure of the packages.

选项&数据表格

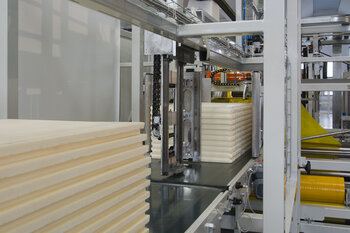

Motorised Pushers

Wide range of product pusher solutions, for panels and trays

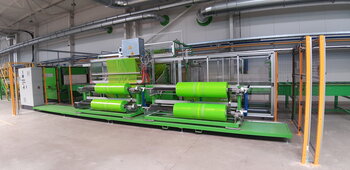

Automatic film reel splicing

An automated process designed for flat film reel configurations.
It enables reel joining without interrupting production, while minimizing waste.

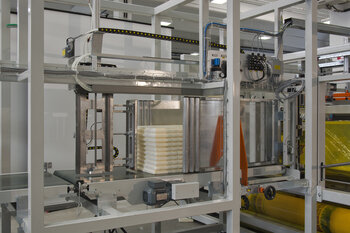

Alignement station

The alignment station ensures precise alignment of products during production. This station streamlines the workflow

技术特性

PE 膜卷最大直径	mm	350
箔纸类型		低密度 PE 40my - 80my
膜卷类型		中心折叠
纵向封口机		热风
横向封口机		密封条
性能
10 - 12 m/min		50/80 TF + 隧道 45/80 M-B
20 - 25 m/min		50/80 TF + 隧道 45/80 S-B
30 - 40 m/min		50/80 TF MB + 隧道 45/80 S-B HS

技术特性

PE 膜卷最大直径	mm	350
箔纸类型		低密度 PE 40my - 80my
膜卷类型		中心折叠
纵向封口机		热风
横向封口机		密封条
性能
5 - 6/min		L = 500mm
5 - 6/min		L = 1,000mm
4 - 5 / min		L = 1,250mm
2 - 3/min		L = 3,200mm
2/min		L = 4,000mm
