DIMAC STAR ONE Compact shrink-wrappers for medium-speed productions

DIMAC STAR ONE

STAR ONE machines, compact in design but technologically advanced, are the right solution for customers that need a compact machine with minimum footprint.

DIMAC STAR ONE
AVAILABLE WITH BASIC SEPARATION SYSTEM OR B.I. ALTERNATE SEPARATION SYSTEM
OUTPUT CAPACITY: UP TO 30 PPM
TYPES OF PACKAGING: FILM ONLY, PAD AND FILM, TRAY AND FILM

PACKAGING MODELS

DIMAC STAR ONE

The STAR ONE machines are available in the following versions:

STAR ONE BASIC: up to 20 packs/minute

STAR ONE B.I: up to 30 packs/minute

Depending on the set-up, this series can realise all the classic secondary packaging solutions.




DIMAC
STAR ONE F

DIMAC
STAR ONE P

DIMAC
STAR ONE T

packs with film only

packs with flat pad and film

packs with tray and film

product benefits

high quality

High quality standards.

compact

Compact machine.

top level electronic

Top Level Eletronic.

easy

Ease of use and maintainance.

STANDARD EQUIPMENTS

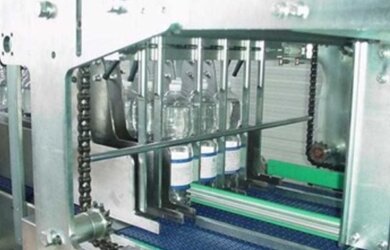

Basic Separation up to 20 ppm
Basic Separation up to 20 ppm

Alternated separation system made up of "tines" that shift laterally thanks to a pneumatic downward movement and let the preset number of products through. Suitable for cylindrical products with a good consistency.

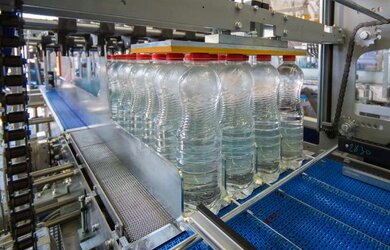

B.I. Separation up to 35 ppm
B.I. Separation up to 35 ppm

This system is composed of a metal conveyor mesh that guarantees the execution of the configuration required through a start/stop system. An upper pneumatic press stabilises the product in the post-separation stage.

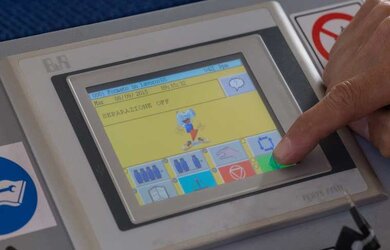

Touch screen display
Touch screen display

Colour touch screen display fitted as standard on all DIMAC machines. It gives operators the possibility of managing all machine parameters and keeping all its functions under control.

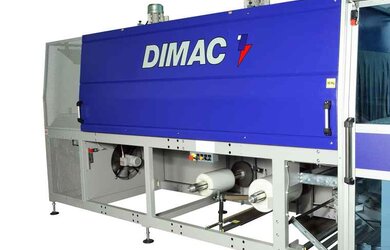

Heat Shrink Tunnel
Heat Shrink Tunnel

Conveyor voltage is maintained constant by a counterweight in the final part of the tunnel. The tunnel is equipped with external regulation to optimise air flow according to the different configurations.

overview

Dimac Star One series offer a really high technology level. The “Top Level” electronic STAR ONE machine control allows high production performances. STAR ONE series machines are designed for easy operator use. In fact, the touch screen panel can be used to control all machine parameters and production statistics, manage and modify sizes and control tunnel temperatures. STAR ONE machines are predisposed to be connected with a centralised net for production data management. The STAR ONE can be reached via modem to permit problem diagnosis, program settings and upgrades.

DIMAC STAR ONE

option & data sheet

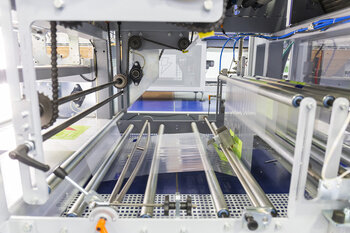

PRINT REGISTRATION DEVICE

Able to run with film total print or spot marks.

PRINT REGISTRATION DEVICE

Standard Technical Features

MODELS   STAR ONE BASIC 20 PPM STAR ONE BI 30PPM
MODELS single lane F

P

T F P T
Overall lenght A mm
inches
7925
312.0
7925
312.0
9700
381.9
8575
337.6
8575
337.6
10350
407.5
Machine widht
(+main electrical cabinet) B
mm
inches
1200/
47.2/63
(+45)
(+17.7)
1200 (+45)
47.2 (17.7)

Working height C min/max mm
min/max inches
1070-1365
42.1-53.7

1070-1365
42.1-53.7

1070-1365
42.1-53.7

1070-1365
42.1-53.7
1070-1365
42.1-53.7
1070-1365
42.1-53.7
Total power kW 44 44 49 44 44 49
Air consumption NI/min 100 100 100 100 100 100
Air pressure bar 6 6 6 6 6 6
