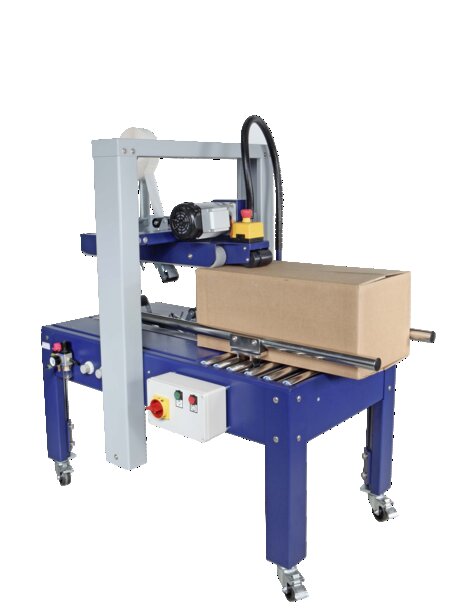

Robotape TBDA HD
Case Sealer & Case Erectors

Robotape TBDA HD Taping machines with top and bottom drive for sealing random size boxes

Robotape TBDA HD

Taping machines with top and bottom drive for sealing random size boxes

contact us Watch the video
Robotape TBDA HD
SUITABLE FOR HIGH AND NARROW BOXES
VARIABLE FORMAT AND TOP-BOTTOM DRIVE BELTS
SUITABLE FOR PAPER TAPE

product benefits

EASY TO USE

CUSTOMIZABLE

IDEAL FOR BOTTLE BOXES (HEAVY AND NARROW)

Compact

sturdiness

SUITABLE FOR STANDARD AND HD TAPING HEADS

DETAILS

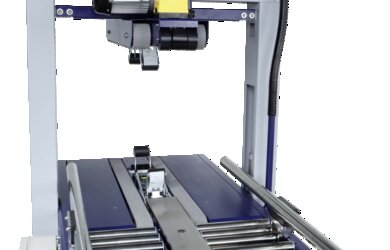

AUTOMATIC ADJUSTMENT OF DIMENSIONS

Thanks to the Self-Sizing-System, Robotape TBDA HD can adjusts automatically to the box’s size.

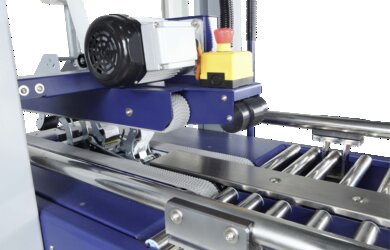

MOTORIZED TOP AND BOTTOM BELT CONVEYORS

The motorized top and bottom gripping belt conveyors ensure a constant mesh on the products.

overview

Discover more on our app Robopac MyCase

Enter your box dimensions and configure your taping machine.






Go to the app

Download for Android

Download for iOS

Robotape TBDA - Taping Range

option & data sheet

HD taping head

TAPING HEAD SUITABLE TO ALL ROBOTAPE TAPING MACHINES RANGE

  • HEAVY DUTY DESIGN for highest productivity

  • HIGH PERFORMANCE soft touch on boxes

  • QUALITY new axial locking system of the internal core

  • HIGH FLEXIBILITY 1 spindle, 3 tape widths

  • PROFESSIONAL easy to set and low noise



HD taping head

idle rollers conveyor

Product handling conveyor with galvanized idle rollers

idle rollers conveyor

idler rollers conveyors and extensible conveyors

Wide range of accessories for taping lines: idler rollers conveyors and extensible conveyors.

idler rollers conveyors and extensible conveyors

Motorized conveyor

Motorized belt product handling conveyor, specific for those products that require a uniform support surface

Motorized conveyor

set of 4 casters with brake

Wheels that facilitate the movement of the machine, equipped with a brake for safe locking.

set of 4 casters with brake

Technical tables downloads

Technical features

Width conveyor belt mm

50
Infeed speed m/min 22
Tape width mm

50 (50 TBDA HD W=135 mm)

50-75 (50 TBDA HD W=160 mm)

50-75 (65 TBDA HD)
N° 2 taping heads (upper and lower)   opt
Minimum boxes dimensions (LxWxH) mm

150x135x110 (50 TBDA HD W=135 mm)

150x160x110 (50 TBDA HD W=160 mm)

150x160x110 (65 TBDA HD)
Maximum boxes dimensions (LxWxH) mm

∞x500x500* (50 TBDA HD)

∞x650x650* (65 TBDA HD)
Minimum box weight kg 1

Max box weight

 kg 50
Power supply voltage V

400V 3Ph + T
Power supply frequency Hz 50
Installed power kW 0,4
Air consumption Nl/min

158 (50 TBDA HD)

218 (65 TBDA HD)

Working pressure

 bar 6±1



*Changing the bridge position it is possible to work boxes with Hmax up to 725 mm (50 TBDA HD), 875 mm (65 TBDA HD)
