Rototech CS/CW Rotating arm stretch wrapping machine

Name: Rototech CS/CW Rotating arm stretch wrapping machine
Brand: robopac

Rototech is the ideal solution for fully automatic wrapping with stretch film of products particularly unstable.

produced by

automatic film clamping and cutting

VARIABLE PRE-STRETCH UP TO 400%

EASY TO USE TOUCH SCREEN CONTROL PANEL WITH CUBE TECHNOLOGY

Available Models

Rototech CS Rototech CW

Rototech CS

Automatic film clamping, cutting and spreading system

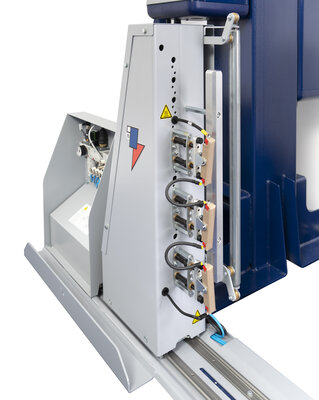

Rototech CW

Automatic film clamping, cutting and welding system

product benefits

AUTOMATIC CLAMPING, CUTTING AND FILM SPREADING OR WELDING SYSTEM

COLOUR TOUCH SCREEN 7’’ WITH CUBE TECHNOLOGY

PERFECT FOR UNSTABLE A/O IRREGULAR PALLETS

IDEAL FOR LOGISTICS

POSSIBILITY TO WRAP PALLET UP TO 1400x1400 mm

ADJUSTABLE ROTATING ARM DEPENDING BY THE PALLET

DETAILS

FR CARRIAGE

Film carriage with electromagnetic powder brake on return roller, stretch tension adjustable from control panel.

PDS CARRIAGE

Pre-stretch system is fixed at 250%. “Stretch Control” control activates the electromagnetic clutch positioned on the first roller.

PVS CARRIAGE

PVS Carriage with powered stretch system controlled by two independent motors. Stretch ratio adjustable from panel board from 150% up to 400%.

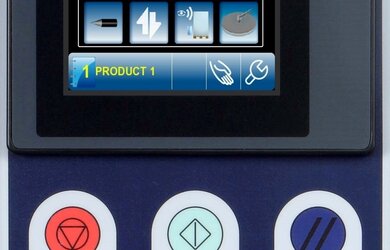

7'' TOUCH SCREEN CONTROL PANEL

The control panel is the brain of Rototech, here lies the heart of the machine and technology Robopac ie Cube Technology.

overview

The ability to keep the pallet still and stabilizing products running a rotating arm is often a necessity for many industries. The Rotary family is of superior quality in a technological environment important for end packaging line. This machine has excellent technical and construction and is the ideal choice to run the pallet wrapping reliably and effectively.

Rototech CS/CW

option & data sheet

R-Connect TOP PRESSER Mechanical roping device

R-Connect

Innovation and connection for customer service: the tranquillity of maximum productivity as a result of constant monitoring of proper machine operation.

Powerful, plug & play and user friendly, R-Connect is a “turnkey” system for the end-user: the main advantage is total “peace of mind”, which is absolute tranquillity regarding machine operation, which includes production performance verification and optimisation of all management costs.

In fact, the system minimises machine downtime and manages maintenance operations better, also providing an immediate troubleshooting procedure, until the full and remote upgrade of the machine’s management software is completed.

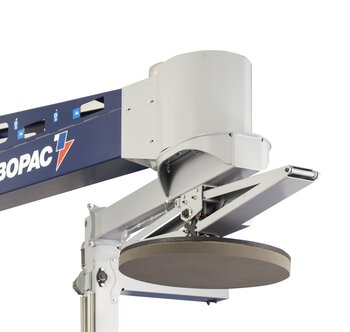

TOP PRESSER

Top presser for the stabilization of light products.

Mechanical roping device

Film roping system useful to increase stabilization and containment of the product.

The reel descends from top to bottom thanks to a special electric motor present on the reel carriage.

The height of the film band and the enabling of roping are adjustable through the touch screen control panel.

Rototech CS/CW

Technical features

Arm rotation speed	rpm	7÷12
Carriage up-down speed	m/min	2,5÷5,5
Maximum product dimensions (LxW)	mm	1400x1400
Minimum product dimensions (LxW)	mm	800x600
Maximum product height	mm	2000 std. 2400/2750 opt.
Film carriage type		FR, PDS, PVS
Film stretch		adjustable from panel
Film pre-stretch		n.a. (FR), fixed 250% std. (PDS), variable 150-400% (PVS)
Power supply voltage	V	230 V 1Ph
Power supply frequency	Hz	50/60
Max reel dimensions	mm	500x300 std. / 750x300 opt.
Max reel weight	kg	20
Film thickness	μm	17÷35
