Stretch wrapping

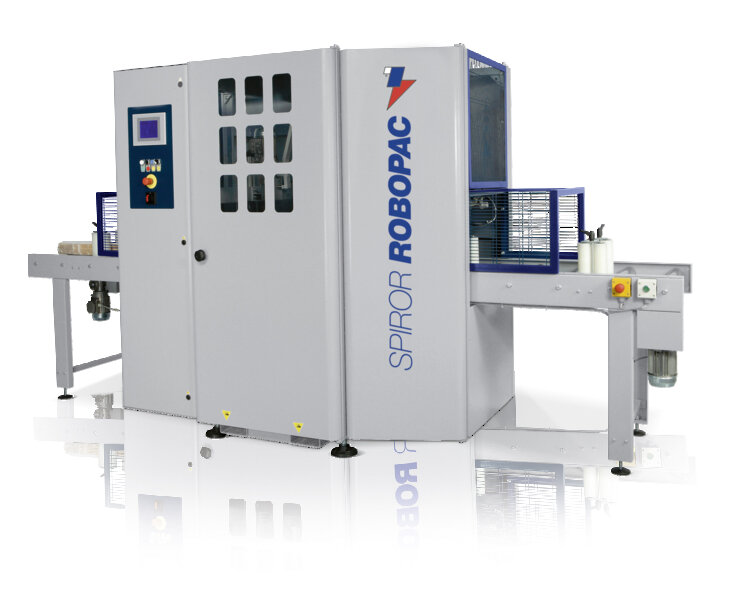

Spiror HP

Spiror HP

Built accordingly to the highest manufacturing standards, the SPIROR line of horizontal stretch wrapping machines includes now a double roll version for models 400, 600 and 900, this Double Roll (DR) version allows even faster wrapping speed. The possible applications for these ROBOPAC machines are practically infinite and the high number of optional features available follows this phylosophy.

Spiror HP
Robust, fast and performing
Very high productivity
ring made of single-cast aluminum to ensure maximum homogeneity and precision in rotation

product benefits

Market leading speed
Ideal to insert in line
Customized solutions available
User friendly operating panel with touch screen
Use with stretch film, polyethylene reels, reels of paper and adhesive tape (LDPE, LLDPE, PVC)

DETAILS

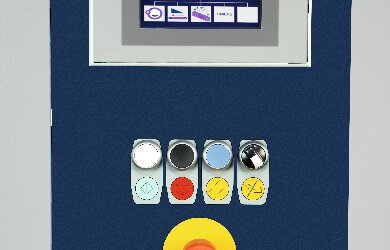

Colour touch screen
Colour touch screen

The control panel has been newly designed, adopting it to a touch screen. Thanks to the large color screen this new panel allows you to create programs simply and immediately. It is supplied with more memory to record up to eight different programs.

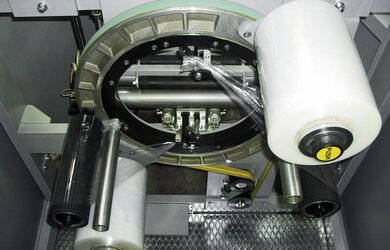

Film carriage unit
Film carriage unit

The film carriage is equipped with quick lock and relese device that facilitates the operator’s job and minimizes inefficiencies in the wrapping process.

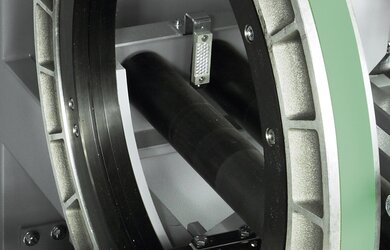

Rotationg ring
Rotationg ring

The rotating ring is built in single casting alluminum to guarantee great strength and reliability of the circular motion. Heavy duty built in single bear ring provides a reliable support and constant performances through time.

Pneumatic pressure
Pneumatic pressure

The Pneumatic pressures ensure the vertical stability of the products during the wrapping process. The coating material, (nylon, PVC, polyurethane) can be changed as an option according to the product to be processed.

overview

Discover more on our app Robopac MyProduct

Configure rotating ring machine suitable to your products.






Go to the app

Download for Android

Download for iOS

SPIROR HP

Technical features

Ring diameter

mm 300

Reel width (W)

mm 125-250

Ring rotation speed

rpm max 260

Feed speed

m/min

18÷58

Cutting and clamping unit

  std

Infeed and outfeed pneumatic pressure unit

  std

Power supply voltage

V 230 V 3Ph / 400 V 3Ph + N

Power supply frequency

Hz 50/60

Installed power

kW 2,3

Current consumption

A 11

Air consumption

Nl/min 20

Working pressure

bar 6±1



Technical features

Ring diameter

mm 400

Reel width (W)

mm 125-250

Ring rotation speed

rpm max 200

Feed speed

m/min

14÷40

Cutting and clamping unit

  std

Infeed and outfeed pneumatic pressure unit

  std

Power supply voltage

V 230 V 3Ph / 400 V 3Ph + N

Power supply frequency

Hz 50/60

Installed power

kW 2,5

Current consumption

A 12

Air consumption

Nl/min 20

Working pressure

bar 6±1



Technical features

Ring diameter

mm 600

Reel width (W)

mm 125-250

Ring rotation speed

rpm max 180

Feed speed

m/min

12÷34

Cutting and clamping unit

  std

Infeed and outfeed pneumatic pressure unit

  std

Power supply voltage

V 230 V 3Ph / 400 V 3Ph + N

Power supply frequency

Hz 50/60

Installed power

kW 2,5

Current consumption

A 12

Air consumption

Nl/min 20

Working pressure

bar 6±1



Technical features

Ring diameter

mm 900

Reel width (W)

mm 125-250

Ring rotation speed

rpm max 130

Feed speed

m/min

10÷29

Cutting and clamping unit

  std

Infeed and outfeed pneumatic pressure unit

  std

Power supply voltage

V 230 V 3Ph / 400 V 3Ph + N

Power supply frequency

Hz 50/60

Installed power

kW 2,5

Current consumption

A 12

Air consumption

Nl/min 20

Working pressure

bar 6±1



Technical features

Ring diameter

mm 400

Reel width (W)

mm 125-250

Ring rotation speed

rpm max 220

Feed speed

m/min

20÷80

Cutting and clamping unit

  std

Infeed and outfeed pneumatic pressure unit

  std

Power supply voltage

V 230 V 3Ph / 400 V 3Ph + N

Power supply frequency

Hz 50/60

Installed power

kW 2,5

Current consumption

A 12

Air consumption

Nl/min 20

Working pressure

bar 6±1



Technical features

Ring diameter

mm 600

Reel width (W)

mm 125-250

Ring rotation speed

rpm max 180

Feed speed

m/min

16÷60

Cutting and clamping unit

  std

Infeed and outfeed pneumatic pressure unit

  std

Power supply voltage

V 230 V 3Ph / 400 V 3Ph + N

Power supply frequency

Hz 50/60

Installed power

kW 2,5

Current consumption

A 12

Air consumption

Nl/min 20

Working pressure

bar 6±1



Technical features

Ring diameter

mm 900

Reel width (W)

mm 125-250

Ring rotation speed

rpm max 130

Feed speed

m/min

10÷50

Cutting and clamping unit

  std

Infeed and outfeed pneumatic pressure unit

  std

Power supply voltage

V 230 V 3Ph / 400 V 3Ph + N

Power supply frequency

Hz 50/60

Installed power

kW 2,5

Current consumption

A 12

Air consumption

Nl/min 20

Working pressure

bar 6±1
