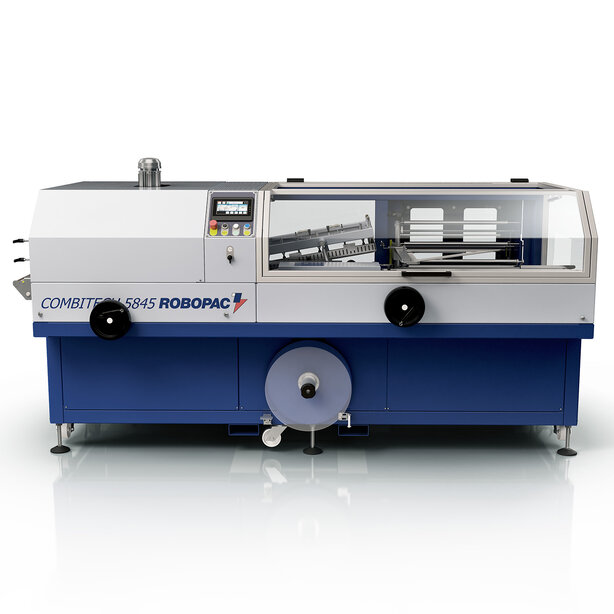

Combitech 5845

Combitech 5845

The continuous development of the product and the constancy in the search for technical solutions and the most suitable materials for packaging with shrink film have led to the creation of a machine with excellent product processing characteristics and great production adaptability. Combitech 5845 therefore offers great versatility and precision as regards the packaging process of the various items and great practicality and safety of use for the operator.

Combitech 5845
COMPACT AND STURDY
Flexible thanks to lots of parameters to be set, perfect for a great range of products
INDUSTRY 4.0, POSSIBILITY OF INSTALLING R-CONNECT SYSTEM
INDUSTRY 4.0, POSSIBILITY OF INSTALLING R-CONNECT SYSTEM

product benefits

HIGH PRODUCTIVITY

Up to 50 products/min

INDUSTRY 4.0

Possibility of installing R-Connect system

HIGH QUALITY PACKAGING

Due to the product being perfectly centred inside the tunnel

ENVELOPE CLOSING UNIFORMITY
FILM OF ANY THICKNESS
WIDE RANGE OF PACKAGEABLE PRODUCTS

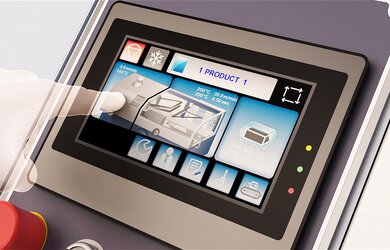

Touch screen control panel
Touch screen control panel

New 7-inch colour touch-screen control panel. Simple use of functions and immediate access to the parameters thanks to the intuitive patented Robopac icons. Possibility of storing up to 100 different packaging cycles.

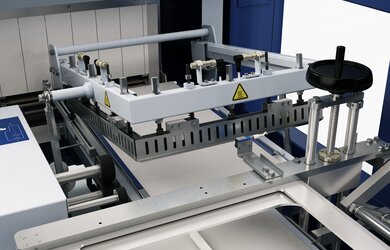

Sealing bars unit
Sealing bars unit

Wide range of packaging products thanks to the l-shaped sealing bars, length 580 mm width 450 mm.

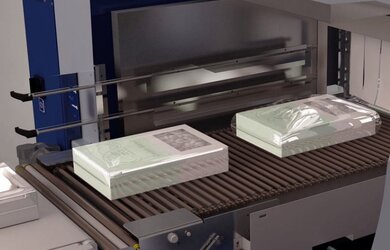

Shrink tunnel
Shrink tunnel

High packaging quality thanks to the perfect centering of the product inside the tunnel.

Combitech 5845

Technical features

Production output

products/min

50*

Sealing bar dimensions (LxW) mm 580x450
Min product dimensions (LxWxH) mm 100x30x20 (50x30x2 opt.)
Maximum product dimensions (LxWxH) mm 550x380x120** (Combitech 5845) / 550x380x180** (Combitech 5845 AVH)
Minimum product weight kg 0,1
Maximum product weight kg 12
Belt conveyor speed controlled by inverter m/min

5÷40

Motorized adjustment system for height of product and centering of coordinated welding

n.a. (Combitech 5845) / std. (Combitech 5845 AVH)

Power supply voltage V 400 V 3Ph + N
Power supply frequency Hz

50/60

Installed power kW 12,7 (Combitech 5845) / 12,9 (Combitech 5845 AVH)
Max reel dimensions mm L=600 Ø=300
Film thickness polyolefin μm

9÷35

Film thickness polyethylene μm 25÷50
Air consumption Nl/min

230

Working pressure bar 6

*The indicated productivity can vary depending on the size of the product, the format of the package and the type of film used

** The maximum dimensions cannot be realized together
