Athena Combi 6555

Athena Combi 6555

Constant product development and research for better solutions and materials in shrink film technology led to the creation of Athena Combi: a machine that delivers great performances and versatility.

Athena Combi 6555
PRODUCTIVITY UP TO 30 products/min
ENVELOPE CLOSING UNIFORMITY
FILM OF ANY THICKNESS

product benefits

PRODUCTIVITY UP TO 30 products/min
ENVELOPE CLOSING UNIFORMITY
FILM OF ANY THICKNESS
WIDE RANGE OF PACKAGEABLE PRODUCTS

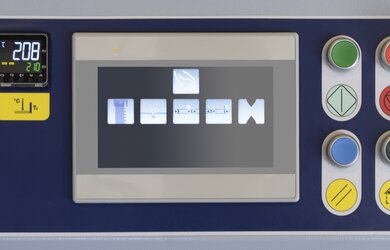

Touch screen control panel
Touch screen control panel

Color Touch Screen control panel. Easy use of the functions and immediate access to the parameters thanks to the intuitive patented Robopac icons. Possibility to memorize up to 100 different packaging cycles.

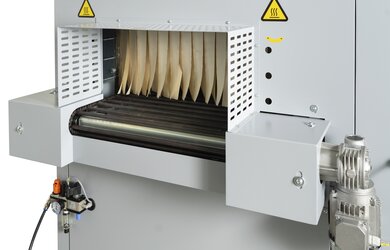

Shrink tunnel
Shrink tunnel

Retraction tunnel with STD chain conveyor with rotating or fixed silicon coated rollers, teflon-coated OPT.

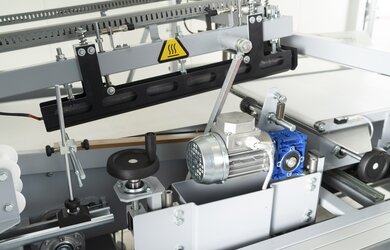

Sealing bars unit
Sealing bars unit

Wide range of packaging products thanks to the l-shaped sealing bars, ength 650 mm width 550 mm.

overview

Athena Combi offers outstanding adaptability and precision in the sealing-shrink wrapping process of a wide range of products along with a user friendly interface and the highest safety standards.

Athena Combi

Technical features

Production output

products/min

30*

Sealing bar dimensions (LxW) mm 650x550
Min product dimensions (LxWxH) mm 130x30x20 (50x30x2 opt.)
Maximum product dimensions (LxWxH) mm 550x450x240**
Minimum product weight kg 0,1
Maximum product weight kg 12
Belt conveyor speed controlled by inverter m/min 10÷40
Power supply voltage V 400 V 3Ph + N
Power supply frequency Hz

50/60

Installed power kW 13,5
Max reel dimensions mm L=800 Ø=300
Film thickness polyolefin μm

11÷35

Film thickness polyethylene μm 25÷50
Air consumption Nl/min

230

Working pressure bar 6

*The indicated productivity can vary depending on the size of the product, the format of the package and the type of film used

** The maximum dimensions cannot be realized together
