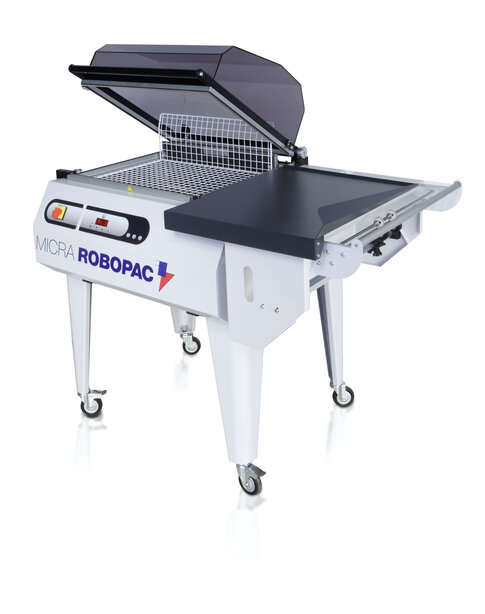

Micra Manual heat-shrink packaging machine

Manual Seal and Shrink packaging machines censure, just with one operation, sealing and shrinking on products to be packed.

produced by

PRODUCTIVITY UP TO 300 products/h

SEALING AND FILM RETRACTION ON THE PRODUCT WITH A SINGLE OPERATION

SMALL INVESTMENT, GREAT RELIABILITY

Available Models

Micra L Micra M

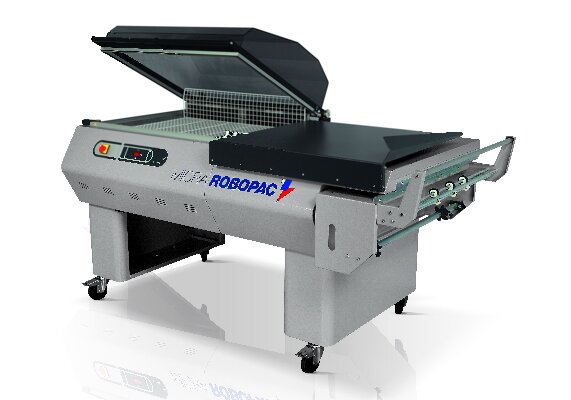

Micra L

Sealing bar dimensions (LxW) 840x590 mm

Micra M

Sealing bar dimensions (LxW) 540x390 mm

product benefits

PRODUCTIVITY UP TO 300 products/h

SEALING AND FILM RETRACTION ON THE PRODUCT WITH A SINGLE OPERATION

SMALL INVESTMENT, GREAT RELIABILITY

LOW CONSUMPTION

EASE OF USE

details

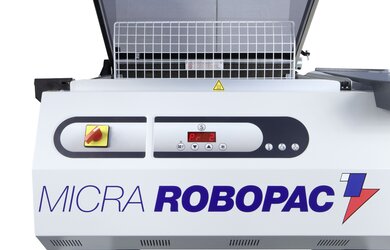

CONTROL PANEL

Quick and easy adjustment of all programming and operating functions.

overview

Thanks to their high reliability, and ease in operation they have a wide range of applications in a large variety of fields such a: Foodstuffs, Graphics, Chemicals, Cosmetics, Electronics, Toys, Pharmaceuticals, Texitiles, Plastic materials etc.

Micra M
Micra L

Technical features

Production capacity	products/h	300*
Sealing bar dimensions (LxW)	mm	540x390
Manually operated sealing bar with automatic return		std
Impulse sealing system with automatic sealing time adjustment		std
Working height with legs	mm	940
Maximum product dimensions (LxWxH)	mm	500x380x200**
Maximum product weight	kg	15
Power supply voltage	V	200/230 V 1Ph
Power supply frequency	Hz	50/60
Installed power	kW	3,45
Current consumption	A	15
Max reel dimensions	mm	L=600 Ø=250
Film thickness	μm	9÷25

*The indicated productivity can vary depending on the size of the product, the format of the package and the type of film used

** The maximum dimensions cannot be realized together

Technical features

Production capacity	products/h	300*
Sealing bar dimensions (LxW)	mm	840x590
Manually operated sealing bar with automatic return		std
Impulse sealing system with automatic sealing time adjustment		std
Working height with legs	mm	940
Maximum product dimensions (LxWxH)	mm	800x500x200**
Maximum product weight	kg	18
Power supply voltage	V	400 V 3Ph + Pe
Power supply frequency	Hz	50/60
Installed power	kW	5,2
Current consumption	A	10
Max reel dimensions	mm	L=800 Ø=300
Film thickness	μm	9÷25

*The indicated productivity can vary depending on the size of the product, the format of the package and the type of film used

** The maximum dimensions cannot be realized together
