Stretch wrapping

Compacta

Compacta | © Compacta, stretch wrapping

The Compacta series machines are built following high quality criteria and construction specifications that have been improved and refined through time. The high degree of satisfaction generated worldwide by the Compacta makes these machines the top preference of final users, which entrust their products to horizontal wrapping technology using stretch film. Thanks to a wide range of ring diameters this line of machines manufactured by Robopac covers completely a broad range of wrapping needs. The versatility of use and the user friendliness of Compacta, combines with high quality level that distinguishes them and places also these Robopac products at the top of their categories.

Compacta | © Compacta, stretch wrapping
sturdy and compact monobloc structure: ideal for installations in small spaces
Activation of the cycle by foot pedal
Activation of the cycle by foot pedal
Automatic clamping and cutting system in total safety

Available models

Compacta

The Compacta series machines are built following high quality criteria and construction specifications that have been improved and refined through time. The high degree of satisfaction generated worldwide by the Compacta makes these machines the top preference of final users, which entrust their products to horizontal wrapping technology using stretch film.

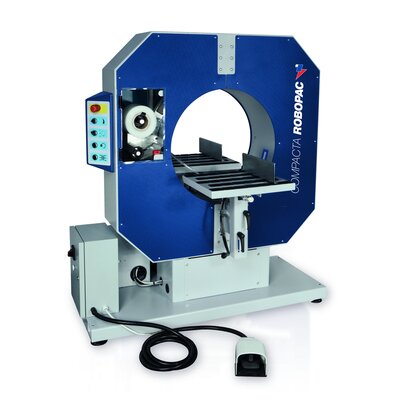

Compacta  | © Compacta, stretch wrapping machine
Compacta SPR

The Compacta Suspension Packaging are built following high quality criteria and construction specifications, improved and thought-out through time.

The high degree of satisfaction received worldwide by the Compacta makes these machines the preference of final users, which entrust their products to horizontal wrapping technology using stretch film. The Suspension Packaging technology was created to provide a safe and effective solution for the packaging of semi-finished products placed on cardboard.

Compacta SPR | © Compacta SPR, stretch wrapping machine
Compacta SPG

The Compacta Suspension Packaging are built following high quality criteria and construction specifications, improved and thought-out through time.


The high degree of satisfaction received worldwide by the Compacta makes these machines the preference of final users, which entrust their products to horizontal wrapping technology using stretch film. The Suspension Packaging technology was created to provide a safe and effective solution for the packaging of semi-finished products placed on cardboard.

Compacta SPG | © Compacta SPG, stretch wrapping machine
Compacta Tyres

Semi-automatic rotating ring machine for the packaging of round shape products.

Compacta Tyres

product benefits

Time saving
Increased operator efficiency
Very low cost-package
Small footprint
Flexible in use

DETAILS

FILM CARRIAGE | © Compacta
FILM CARRIAGE

The film carriage unit has a direct breaking transmission roller and it is adjustable at any time it also eases spool loading and film insertion to a maximum. The film carriage device is equipped with locking and quick release of the reel.

CUTTING AND CLAMP UNIT
CUTTING AND CLAMP UNIT

The automatic highly reliable dual rod clamping and cutting system fully automates the wrapping process.

overview

Discover more on our app Robopac MyProduct

Configure rotating ring machine suitable to your products.






Go to the app

Download for Android

Download for iOS

Horizontal range

Compacta
Compacta Tyres
Compacta SPR

Technical features

ring diameter mm 410
reel width W mm 125
ring rotation speed rpm

10÷150

Adjustable conveyors mm 800
clamping and cutting unit   std
power supply voltage V 230 V 1Ph + N
power supply frequency Hz 50/60
installed power kW 0,55
Compressed air consumption Nl/cycle 1,8
Working pressure bar 6±1



Technical features

ring diameter mm 610
reel width W mm 125
ring rotation speed rpm

40÷120

Adjustable conveyors mm 800÷890
clamping and cutting unit   std
power supply voltage V 230 V 1Ph + N
power supply frequency Hz 50/60
installed power kW 0,75
Compressed air consumption Nl/cycle 1,8
Working pressure bar 6±1



Technical features

ring diameter mm 960
reel width W mm 125/250
ring rotation speed rpm

30÷75 (W=125) / 30÷60 (W=250)

Adjustable conveyors mm 800÷925
clamping and cutting unit   std
power supply voltage V 230 V 1Ph + N (W=125) / 400 V 3Ph + N (W=250)
power supply frequency Hz 50/60
installed power kW 0,75
Compressed air consumption Nl/cycle 1,8 (W=125) / 3,2 (W=250)
Working pressure bar 6±1



Technical features

ring diameter mm 1250
reel width W mm 125/250
ring rotation speed rpm

30÷58

Adjustable conveyors mm 800÷1100
clamping and cutting unit   std
power supply voltage V 400 V 3Ph + N
power supply frequency Hz 50/60
installed power kW 1,5
Compressed air consumption Nl/cycle 3,2
Working pressure bar 6±1



Technical features

ring diameter mm 610 (SPR 6), 970 (SPR 9), 1300 (SPR 12)
reel width W mm 125 (SPR 6), 125 (SPR 9) 125/250 (SPR 12)
ring rotation speed rpm

10÷120 (SPR 6), 10÷75 (SPR 9), 5÷58 (SPR 12)

Adjustable conveyors mm no
clamping and cutting unit   std
power supply voltage V 400 V 3Ph + N
power supply frequency Hz 50/60
installed power kW 0,75 (SPR - SPR 9), 1,5 (SPR 12)
Compressed air consumption Nl/cycle 1,8 (SPR 6), 5,8 (SPR 9), 12,6 (SPR 12)
Working pressure bar 6±1



Technical features

ring diameter mm 410 (SPG 4), 610 (SPG 6)
reel width W mm 125
ring rotation speed rpm

10÷160 (SPG 4), 10÷120 (SPG 6)

Adjustable conveyors mm std
clamping and cutting unit   std
power supply voltage V 400 V 3Ph + N
power supply frequency Hz 50/60
installed power kW 0,55 (SPG 4), 0,75 (SPG 6)
Compressed air consumption Nl/cycle 1,8
Working pressure bar 6±1



Technical features

ring diameter mm 960 (Tyres 9), 1250 (Tyres 12)
reel width W mm 125
ring rotation speed rpm

5÷50 manual cycle

5÷75 automatic cycle

product diameter to be wrapped (min/max) mm

min 350, max 630 (Tyres 9)

min 350, max 850 (Tyres 12)

Adjustable conveyors mm std
clamping and cutting unit   std
power supply voltage V 400 V 3Ph + N
power supply frequency Hz 50/60
installed power kW 2,2 (Tyres 9), 3,3 (Tyres 12)
Compressed air consumption Nl/cycle

3,5÷55 (Tyres 9)

8,5÷56 (Tyres 12)

Working pressure bar 6±1
