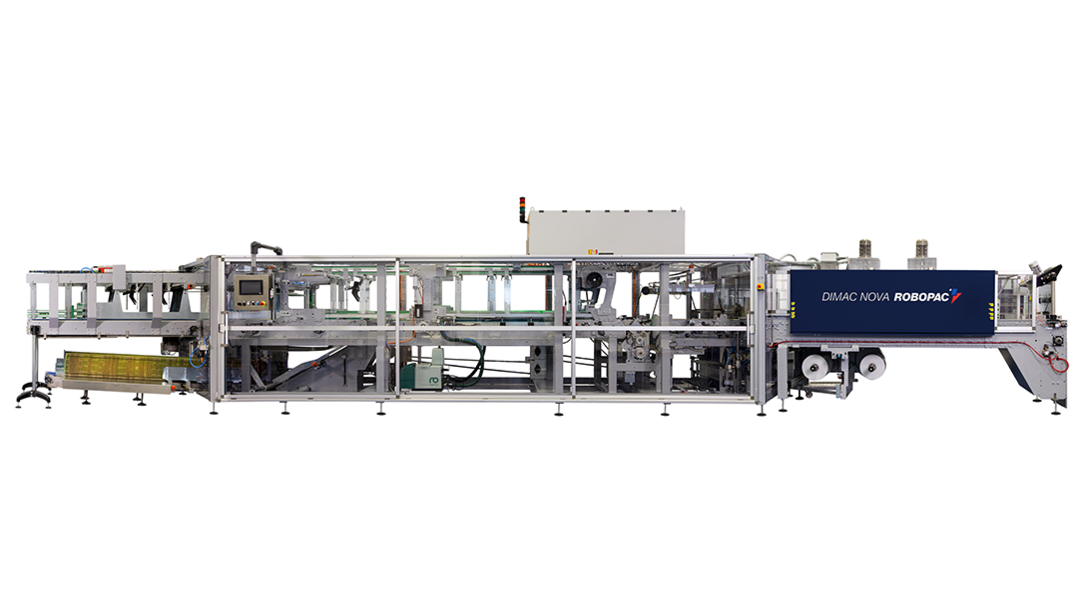

DIMAC NOVA 50/60 Shrink wrappers for high-speed productions
Dimac Nova is the range of shrink-wrapping and tray forming machines developed by Robopac, designed to have maximum flexibility and ease of use & maintenance for operators.
PACKAGING MODELS
DIMAC NOVA 50/60
Depending on the set-up, this series can realise all the classic secondary packaging solutions with film and carton tray.
|
|
|
|
 |
 |
|
 |
|
packs with film only |
packs with flat pad and film |
packs with tray and film |
packs with tray only |
product benefits
STANDARD EQUIPMENTS
Wide machine frame
Full length sliding doors for complete visibility and accessibility. 2/3 of the machine length open. The electrical cabinet is integrated on top of the machine frame.
Touch screen display
Wide and user-friendly touch screen display. It gives operators the possibility of managing all machine parameters and keeping all its functions under control.
Led lighting
Led lighting of the working area to facilitate cleaning and maintenance operations.
Film unit
Easy accessibility to the film unit thanks to the swinging conveyor. In case of film vacuum table, the accessibility to the film group is granted by an extractable unit.
Dimac Nova 50
option & data sheet
High Performance Shrink Tunnel
The tunnel is equipped with external regulation to optimise air flow according to the different configurations. Conveyor voltage is maintained constant by a counterweight in the final part of the tunnel. It is possible to have the H.P. standard shrink-tunnel for normal tasks and the H.P. plus for enhanched tasks.
REMOVABLE FILM UNIT
The system offers easy access to the film unit, for quick and efficient maintenance. This application is particularly suited for liquid product sectors, such as dairy and beverage, where the primary packaging may break, possibly soiling the film.
Automatic reel change
The system seals and cuts the film in a fully-automated fashion without any operator intervention, this option makes it possible to continue without stopping film unwinding and the production cycle. The reel configuration is set up by the operator, through simple manual procedures.
Automatic format change
Format change operations are carried out simply from the operator panel. The switch to the new format is carried out electronically through brushless motors.
Double layer stacker unit
This is a fully scalable option that allow you to stack two layers of product, the unit can be configured differently based on the type of product or the packaging solution.
Easy film
External film group for reel loading that grants better access for format change operations and reel sealing means excellent man-machine interaction. The external reels option also offers automatic reel-change.
Standard Technical Features
| Total length | mm | F 6765 - P 6765 - T 8444 |
| Machine width (+ electric panel) | mm | 1563 |
| Worktop height | mm | 1050 - 1150 |
| Caratteristiche Elettriche Standard (*) | ||
| Total power | Kw | F 42 - P 42 - T 42 |
| Caratteristiche pneumatiche standard (*) | ||
| Air consumption | Nl/min | 20 - 100 |
| Air pressure | BAR | 6 |
| (*) Values are purely theoretical. We recommend contacting Dimac to assess the specific values for each project according to the products and materials used. | ||
