Stretch wrapping

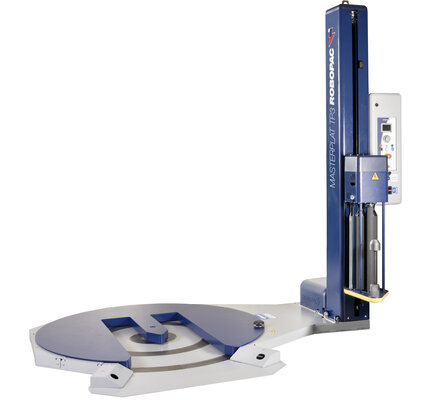

Masterplat Plus TP3

Masterplat Plus TP3

Masterplat Plus TP3 is a turntable wrapping machine for wrapping products with stretch film in vertical. Thanks to the TP3 turntable, designed for loading with hand pallet trucks, it is possible to change the load side by choosing 3 different configurations according to the customer's needs.

Masterplat Plus TP3
3,5 inches colour graphic display and parameters selector by JOG.
250% fixed pre-stretch
EXCELLENT COMPROMISE BETWEEN ECONOMIC SAVINGS AND PERFORMANCE

Available Models

Masterplat Plus TP3

Masterplat Plus TP3 is a turntable wrapping machine for wrapping products with stretch film in vertical. Thanks to the TP3 turntable, designed for loading with hand pallet trucks, it is possible to change the load side by choosing 3 different configurations according to the customer's needs.

BENEFITS

  • USABILITY designed for loading with hand pallet trucks
  • FLEXIBILITY thanks to the new base, it can be installed in 3 different loading lines
  • SAFETY equipped with new ramp with safety photocells
  • EASE OF LOADING new V shape for easy entry of the pallet truck
  • STURDINESS greater solidity thanks to the new rolling system of the plate



Masterplat  Plus TP3
Masterplat Plus Inox TP3

Stainless steel wrapping turntable for use in the foodstuffs field, and outside place with high humidity.

Thanks to the TP3 basement, designed for loading with hand pallet trucks, it is possible to change the load side by choosing 3 different configurations according to the customer's needs.

BENEFITS:

  • The perfect solution for companies working in the food industry
  • Greater resistance to oxidation and corrosion
  • Designed for loading with hand pallet trucks
  • Thanks to the new base, it can be installed in 3 different way
  • Stainless steel material for environments with a high humidity level
  • Possible version for temperatures up to -30°C
Masterplat  Plus Inox TP3
Masterplat Plus Freezer TP3

Wrapping turntable freezer for use in the foodstuffs field and low temperature environments (-30°).

Thanks to the TP3 turntable, designed for loading with hand pallet trucks, it is possible to change the load side by choosing 3 different configurations according to the customer's needs.

BENEFITS

  • Working temperature up to -30°C
  • Designed for loading with hand pallet trucks
  • Thanks to the new base, it can be installed in 3 different way
  • Ideal for food products
  • Silicone cables suitable for low temperatures that ensure long life
Masterplat  Plus Freezer TP3

product benefits

USABILITY

Designed for loading with hand pallet trucks

FLEXIBILITY

Thanks to the new base, it can be installed in 3 different loading lines

SAFETY

Equipped with new ramp with safety photocells

EASE OF LOADING

New V shape for easy entry of the pallet truck

STURDINESS

Greater solidity thanks to the new rolling system of the plate

DETAILS

FRD CARRIAGE
FRD CARRIAGE

Film carriage with mechanical brake manually adjustable to set the film tensioning. Brake engagement- release device to facilitate hooking the film to the base of the pallet.

PGS CARRIAGE
PGS CARRIAGE

The PGS film delivery device is equipped with a powered fixed gear (250%) pre-stretch system. A wide range of additional gear sets can also be purchased (150%-200-300%).

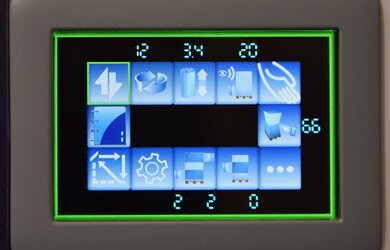

3,5 Inches colour graphic display
3,5 Inches colour graphic display

Parameter selection by jog: programming of the cycles in a simple and intuitive way

overview

Discover more on our app Robopac HMI

Try the Rotoplat, Masteplat Plus & Robot S7 user friendly control panel on your devices.





Download for Android

Download for iOS

Masterplat Plus TP3

option & data sheet

R-Connect

Innovation and connection for customer service: the tran­quillity of maximum productivity as a result of constant monitoring of proper machine operation.


Powerful, plug & play and user friendly, R-Connect is a “turnkey” system for the end-user: the main advantage is total “peace of mind”, which is absolute tranquillity regarding machine operation, which includes production performance verification and optimisation of all manage­ment costs.

In fact, the system minimises machine downtime and manages maintenance oper­ations better, also providing an immediate troubleshooting procedure, until the full and remote upgrade of the machine’s management software is completed.

R-Connect

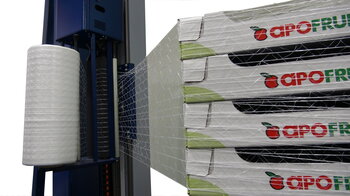

Net film carriage

This carriage is used in all those sectors where product transpiration is required (fruit, vegetables, etc.)

Net film carriage

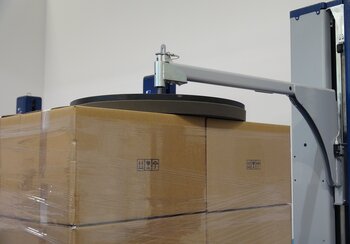

Top presser

Top presser for the stabilization of light products.

Available in two versions: mechanical and pneumatic.

Top presser

Technical features

Turntable diameter mm

1500 std. 1650/1800 opt.

Max load weight kg

1200 std. 1500 opt.

Turntable speed rpm 5÷12
Carriage up-down speed m/min 1,4÷4
Maximum product dimensions (LxW) mm

800x1200 std. 1000x1200 / 1200x1200 opt.

Maximum product height mm 2200 std. 2400/2800/3100 opt.
Film carriage type   FRD, PGS
Film stretch   manual (FRD), adjustable from panel (PGS)
Film pre-stretch

n.a. (FRD), fixed 250% std. (PGS)

Forklifting   rear
Power supply voltage V 230 V 1Ph
Power supply frequency Hz 50/60
Installed power kW 1,5 (FRD) / 1,9 (PGS)
Max reel dimensions mm

500x300

Max reel weight kg 20
Film thickness μm 17÷35

Technical features

Turntable diameter mm

1650

Max load weight kg

1500

Turntable speed rpm 5÷12
Carriage up-down speed m/min 1,4÷4
Maximum product dimensions (LxW) mm

1000x1200

Maximum product height mm 2200 std. 2400/2800 opt.
Film carriage type   FRD, PGS
Film stretch   manual (FRD), adjustable from panel (PGS)
Film pre-stretch

n.a. (FRD), fixed 250% std. (PGS)

Forklifting   rear
Power supply voltage V 230 V 1Ph
Power supply frequency Hz 50/60
Installed power kW 1,5 (FRD) / 1,9 (PGS)
Max reel dimensions mm

500x300

Max reel weight kg 20
Film thickness μm 17÷35

Technical features

Turntable diameter mm

1650

Max load weight kg

1500

Turntable speed rpm 5÷12
Carriage up-down speed m/min 1,4÷4
Maximum product dimensions (LxW) mm

1000x1200

Maximum product height mm 2200 std. 2400 opt.
Film carriage type   FRD, PGS
Film stretch   manual (FRD), adjustable from panel (PGS)
Film pre-stretch

n.a. (FRD), fixed 250% std. (PGS)

Forklifting   rear
Power supply voltage V 230 V 1Ph
Power supply frequency Hz 50/60
Installed power kW 1,5 (FRD) / 1,9 (PGS)
Max reel dimensions mm

500x300

Max reel weight kg 20
Film thickness μm 17÷35
