Robotape A HD
Semi-automatic taping machine for variable format boxes
Case Sealer & Case Erectors

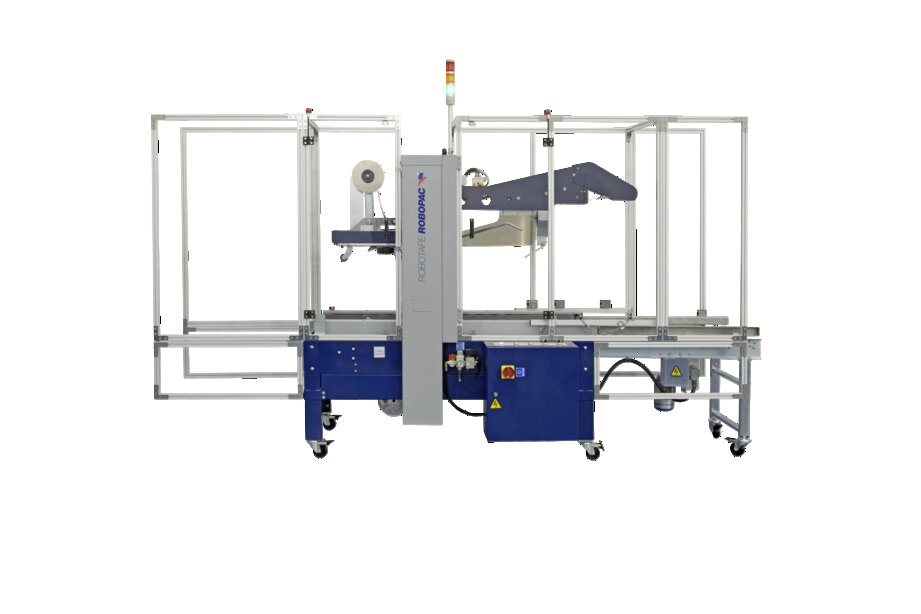

Robotape CFA HD Side belt driven taping machine for random size boxes with automatic top flaps folding device
Side belt driven taping machine for random size boxes with automatic top flaps folding device.
produced by
VARIABLE FORMAT AND SIDE DRIVE BELTS
product benefits
DETAILS

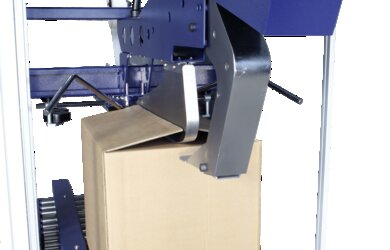

AUTOMATIC FOLDING
Automatic top flaps folding device.
FORMAT SELF-SIZING
The machine self-sizes to close the upper flaps and to tape the upper and lower sides of the different format and sized boxes.

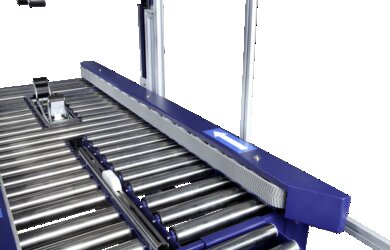

MOTORIZED SIDE BELT CONVEYORS
The motorized side gripping belt conveyors ensure a constant mesh on the products.
overview
Discover more on our app Robopac MyCase
Enter your box dimensions and configure your taping machine.
Robotape CFA
option & data sheet
HD taping head
TAPING HEAD SUITABLE TO ALL ROBOTAPE TAPING MACHINES RANGE
-
HEAVY DUTY DESIGN for highest productivity
-
HIGH PERFORMANCE soft touch on boxes
-
QUALITY new axial locking system of the internal core
-
HIGH FLEXIBILITY 1 spindle, 3 tape widths
-
PROFESSIONAL easy to set and low noise
Motorized conveyor
Motorized belt product handling conveyor, specific for those products that require a uniform support surface
set of 4 casters with brake
Wheels that facilitate the movement of the machine, equipped with a brake for safe locking.
Technical tables downloads
Technical features
| Height conveyor belt | mm |
50 std. 75 opt. |
| Infeed speed | m/min | 26,4 |
| Tape width | mm |
50 - 75 |
| N° 2 taping heads (upper and lower) | opt | |
| Minimum boxes dimensions (LxWxH) | mm |
150x110x110 |
| Maximum boxes dimensions (LxWxH) | mm |
650x500x500 |
| Minimum box weight | kg | 1 |
|
Max box weight |
kg | 50 |
| Power supply voltage | V |
400 V 3 Ph + N +Pe |
| Power supply frequency | Hz | 50 |
| Installed power | kW | 0,4 |
| Air consumption | Nl/min | 50 |
|
Working pressure |
bar | 6±1 |
