Case sealer & Case erectors

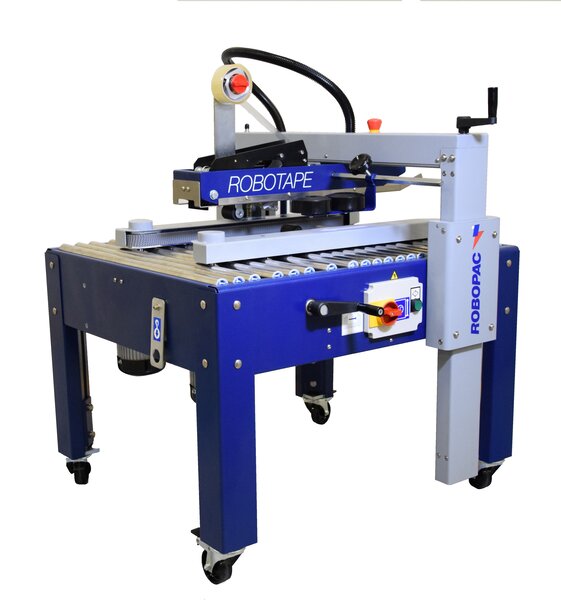

Robotape ME LH HD Semi-automatic taping machine with fixed format for low boxes
Semi-automatic taping machine with fixed format for low boxes
FIXED FORMAT AND SIDE DRIVE BELTS
product benefits
DETAILS

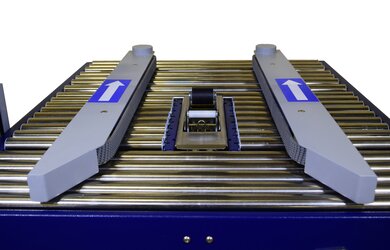

MOTORIZED SIDE BELT CONVEYORS
The motorized side gripping belt conveyors ensure a constant mesh on the products.

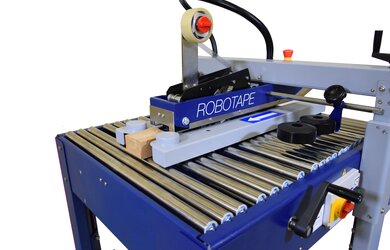

MANUAL ADJUSTMENT OF DIMENSIONS
You can adjust manually height and width of conveyors
overview
Discover more on our app Robopac MyCase
Enter your box dimensions and configure your taping machine.
Robotape ME LH
option & data sheet
idle rollers conveyor
Product handling conveyor with galvanized idle rollers
set of 4 casters with brake
Wheels that facilitate the movement of the machine, equipped with a brake for safe locking.
Technical features
| Height conveyor belt | mm | 30 |
| Infeed speed | m/min | 22 |
| Tape width | mm | 25 - 38 |
| N° 2 taping heads (upper and lower) | opt | |
| Minimum boxes dimensions (LxWxH) | mm |
100x80x50 |
| Maximum boxes dimensions (LxWxH) | mm |
∞x500x500 |
| Power supply voltage | V |
230 V 1Ph + T |
| Power supply frequency | Hz | 50 |
| Installed power | kW | 0,4 |
| Air consumption | Nl/min | n.a. |
|
Working pressure |
bar | n.a. |
