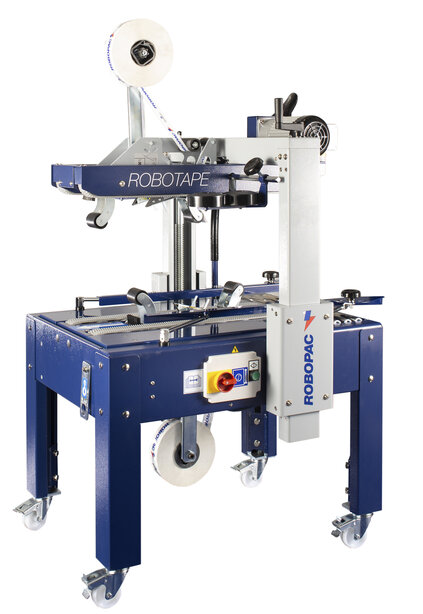

Robotape TBDE HD Semi-automatic taping machine with fixed format
Taping machines with top and bottom drive for sealing fixed format box.
produced by
FIXED FORMAT AND TOP-BOTTOM DRIVE BELTS
product benefits
DETAILS

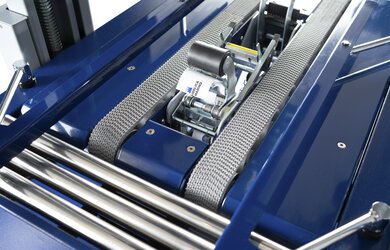

MOTORIZED TOP AND BOTTOM BELT CONVEYORS
The motorized top and bottom gripping belt conveyors ensure a constant mesh on the products.
overview
Discover more on our app Robopac MyCase
Enter your box dimensions and configure your taping machine.
Robotape TBDE - Taping Range
option & data sheet
HD taping head
TAPING HEAD SUITABLE TO ALL ROBOTAPE TAPING MACHINES RANGE
-
HEAVY DUTY DESIGN for highest productivity
-
HIGH PERFORMANCE soft touch on boxes
-
QUALITY new axial locking system of the internal core
-
HIGH FLEXIBILITY 1 spindle, 3 tape widths
-
PROFESSIONAL easy to set and low noise
idle rollers conveyor
Product handling conveyor with galvanized idle rollers
idler rollers conveyors and extensible conveyors
Wide range of accessories for taping lines: idler rollers conveyors and extensible conveyors.
Motorized conveyor
Motorized belt product handling conveyor, specific for those products that require a uniform support surface
set of 4 casters with brake
Wheels that facilitate the movement of the machine, equipped with a brake for safe locking.
Technical tables downloads
Technical features
| Width conveyor belt | mm | 50 std |
| Infeed speed | m/min | 22 |
| Tape width | mm |
50 (W=135 mm) 50 - 75 (W=160 mm) |
| N° 2 taping heads (upper and lower) | opt | |
| Minimum boxes dimensions (LxWxH) | mm |
150x135x110 (W=135 mm) 150x160x110 (W=160 mm) |
| Maximum boxes dimensions (LxWxH) | mm |
∞x500x500 |
| Minimum box weight | kg | 1 |
|
Max box weight |
kg | 50 |
| Power supply voltage | V |
230 V 1Ph + T |
| Power supply frequency | Hz | 50 |
| Installed power | kW | 0,4 |
| Air consumption | Nl/min | n.a. |
|
Working pressure |
bar | n.a. |
