Robotape CF HD Taping machine with fix format with automatic flap closing
Side belt driven taping machines for uniform size boxes fitted with automatic top flaps folding device. Available in two different model 50 CF HD and 65 CF HD.
Available Models

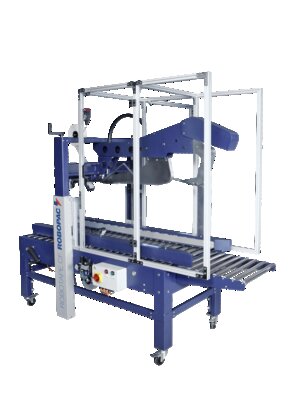

Robotape CF HD
Side belt driven taping machines for uniform size boxes fitted with automatic top flaps folding device. Available in two different model 50 CF and 65 CF.

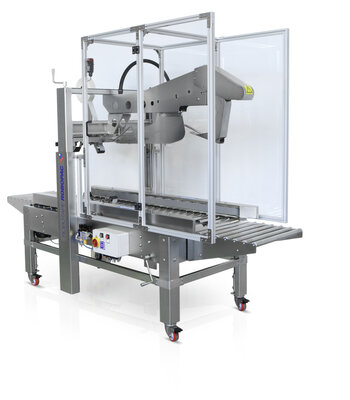

Robotape CF HD Inox
Taping machine 50 CF in stainless steel version, for use in the foodstuffs field, and outside place with high humidity.
product benefits
DETAILS

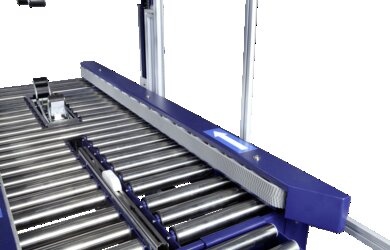

MOTORIZED SIDE BELT CONVEYORS
The motorized side gripping belt conveyors ensure a constant mesh on the products.

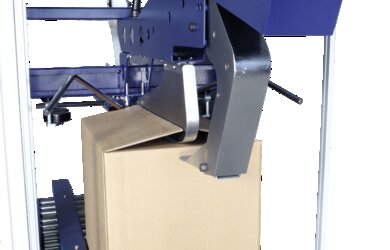

AUTOMATIC FOLDING
Automatic top flaps folding device.
overview
Discover more on our app Robopac MyCase
Enter your box dimensions and configure your taping machine.
Robotape CF
option & data sheet
HD taping head
TAPING HEAD SUITABLE TO ALL ROBOTAPE TAPING MACHINES RANGE
-
HEAVY DUTY DESIGN for highest productivity
-
HIGH PERFORMANCE soft touch on boxes
-
QUALITY new axial locking system of the internal core
-
HIGH FLEXIBILITY 1 spindle, 3 tape widths
-
PROFESSIONAL easy to set and low noise
idler rollers conveyors and extensible conveyors
Wide range of accessories for taping lines: idler rollers conveyors and extensible conveyors.
idle rollers conveyor
Product handling conveyor with galvanized idle rollers
Motorized conveyor
Motorized belt product handling conveyor, specific for those products that require a uniform support surface
set of 4 casters with brake
Wheels that facilitate the movement of the machine, equipped with a brake for safe locking.
Technical features
| Height conveyor belt | mm |
50 |
| Infeed speed | m/min | 22 |
| Tape width | mm |
50 - 75 |
| N° 2 taping heads (upper and lower) | opt | |
| Minimum boxes dimensions (LxWxH) | mm |
150x110x110 |
| Maximum boxes dimensions (LxWxH) | mm |
650x500x500* (50 CF HD) 800x650x650* (65 CF HD) |
| Minimum box weight | kg | 1 |
|
Max box weight |
kg | 50 |
| Power supply voltage | V |
400V 3Ph + T |
| Power supply frequency | Hz | 50 |
| Installed power | kW | 0,4 |
| Air consumption | Nl/min | 20 |
|
Working pressure |
bar | 6±1 |
*Changing the bridge position it is possible to work boxes with Hmax up to 725 mm (50 CF HD), 875 mm (65 CF HD)
Technical features
| Height conveyor belt | mm |
50 |
| Infeed speed | m/min | 22 |
| Tape width | mm |
50 - 75 |
| N° 2 taping heads (upper and lower) | opt | |
| Minimum boxes dimensions (LxWxH) | mm |
150x110x110 |
| Maximum boxes dimensions (LxWxH) | mm |
650x500x500* |
| Minimum box weight | kg | 1 |
|
Max box weight |
kg | 50 |
| Power supply voltage | V |
400V 3Ph + T |
| Power supply frequency | Hz | 50 |
| Installed power | kW | 0,4 |
| Air consumption | Nl/min | 20 |
|
Working pressure |
bar | 6±1 |
*Changing the bridge position it is possible to work boxes with Hmax up to 725 mm
