Robotape TBD HD Semi-automatic taping machine with fixed format
Taping machines with top and bottom drive for sealing fixed format box, available in three versions: 50 TBD HD, 65 TBD HD and 80 TBD HD.
Available Models

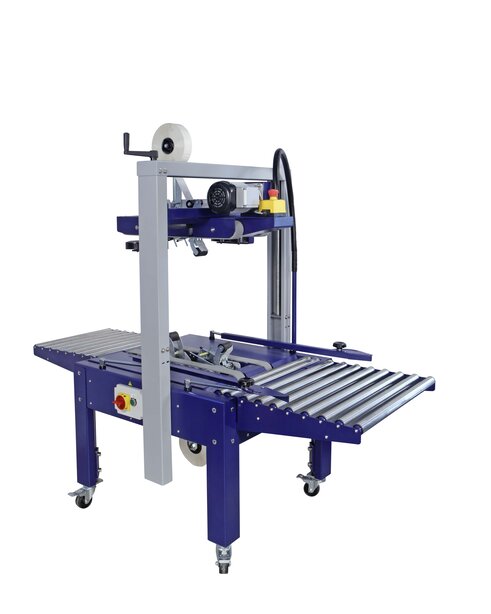

Robotape TBD HD
Taping machines with top and bottom drive for sealing fixed format box, available in three versions: 50TBD, 65TBD and 80TBD.

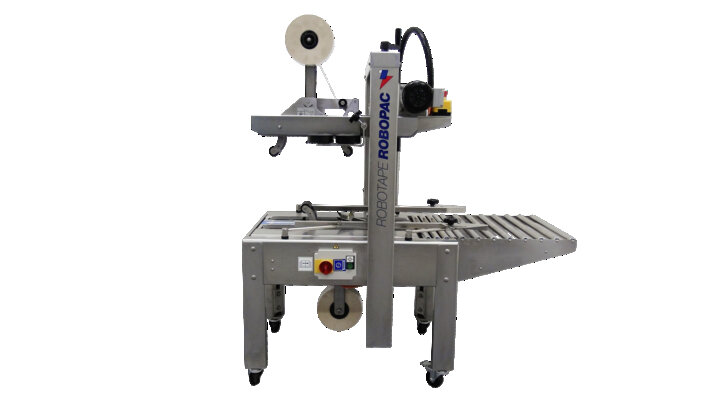

Robotape TBD HD Inox
Taping machine 50TBD in stainless steel version, for use in the foodstuffs field, and outside place with high humidity.
product benefits
DETAILS
MOTORIZED TOP AND BOTTOM BELT CONVEYORS
The motorized top and bottom gripping belt conveyors ensure a constant mesh on the products.

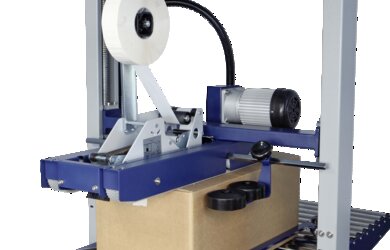

MANUAL ADJUSTMENT OF DIMENSIONS
You can adjust manually height and width of conveyors.
overview
Discover more on our app Robopac MyCase
Enter your box dimensions and configure your taping machine.
Robotape TBD - Taping Range
option & data sheet
HD taping head
TAPING HEAD SUITABLE TO ALL ROBOTAPE TAPING MACHINES RANGE
-
HEAVY DUTY DESIGN for highest productivity
-
HIGH PERFORMANCE soft touch on boxes
-
QUALITY new axial locking system of the internal core
-
HIGH FLEXIBILITY 1 spindle, 3 tape widths
-
PROFESSIONAL easy to set and low noise
set of 4 casters with brake
Wheels that facilitate the movement of the machine, equipped with a brake for safe locking.
idle rollers conveyor
Product handling conveyor with galvanized idle rollers
idler rollers conveyors and extensible conveyors
Wide range of accessories for taping lines: idler rollers conveyors and extensible conveyors.
Motorized conveyor
Motorized belt product handling conveyor, specific for those products that require a uniform support surface
Technical features
| Width conveyor belt | mm |
50 (Robotape 50 TBD HD W=135mm) 50 (Robotape 50 TBD HD W=160mm) 50 (Robotape 65 TBD HD W=160 mm) 50 above -115 below (Robotape 80 TBD HD W=160 mm) |
| Infeed speed | m/min | 22 |
| Tape width | mm |
50 (Robotape 50 TBD HD W=135mm) 50-75 (Robotape 50 TBD HD W=160 mm) 50-75 (Robotape 65 TBD HD W=160 mm) 50-75 (Robotape 80 TBD HD W=160 mm) |
| N° 2 taping heads (upper and lower) | opt | |
| Minimum boxes dimensions (LxWxH) | mm |
150x135x110 (Robotape 50 TBD HD W=135 mm) 150x160x110 (Robotape 50 TBD HD W=160 mm) 150x160x110 (Robotape 65 TBD HD W=160 mm) 150x160x110 (Robotape 80 TBD HD W=160 mm) |
| Maximum boxes dimensions (LxWxH) | mm |
∞x500x500* (Robotape 50 TBD HD W=135 mm) ∞x500x500* (Robotape 50 TBD HD W=160 mm) ∞x650x650* (Robotape 65 TBD HD W=160 mm) ∞x800x800* (Robotape 80 TBD HD W=160 mm) |
| Minimum box weight | kg | 1 |
|
Max box weight |
kg | 50 |
| Power supply voltage | V |
400V 3Ph + T |
| Power supply frequency | Hz | 50 |
| Installed power | kW | 0,4 |
| Air consumption | Nl/min | n.a. |
|
Working pressure |
bar | n.a. |
*Changing the bridge position it is possible to work boxes with Hmax up to 725 mm (50 TBD HD), 875 mm (65 TBD HD) and 1025 mm (80 TBD HD)
| Height conveyor belt | mm |
50 |
| Infeed speed | m/min | 22 |
| Tape width | mm |
50 (W=135 mm) 50-75 (W=160 mm) |
| N° 2 taping heads (upper and lower) | opt | |
| Minimum boxes dimensions (LxWxH) | mm |
150x135x110 (W=135 mm) 150x160x110 (W=160 mm) |
| Maximum boxes dimensions (LxWxH) | mm |
∞x500x500 |
| Minimum box weight | kg | 1 |
|
Max box weight |
kg | 50 |
| Power supply voltage | V |
400V 3Ph + T |
| Power supply frequency | Hz | 50 |
| Installed power | kW | 0,4 |
| Air consumption | Nl/min | n.a. |
|
Working pressure |
bar | n.a. |
*Changing the bridge position it is possible to work boxes with Hmax up to 725 mm (50 TBD), 875 mm (65 TBD) and 1025 mm (80 TBD)
