Stretch wrapping

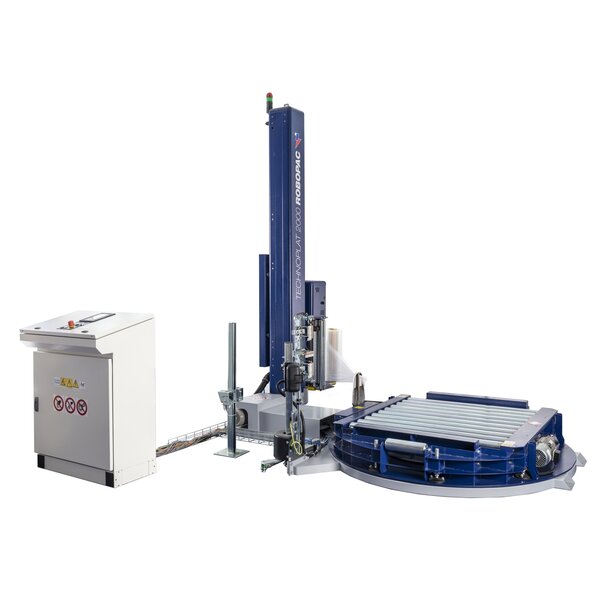

Technoplat 2000

Technoplat 2000

Technoplat 2000 is a high-performance, highly automated wrapping station for an end-of-line packaging. The design, materials and dedicated software applied to developing this in-line wrapping machine are based on the highests standards of quality and safety.

Technoplat 2000
ideal for automatic lines
pre-stretch up to 400%
EASY TO USE TOUCH SCREEN CONTROL PANEL WITH CUBE TECHNOLOGY
EASY TO USE TOUCH SCREEN CONTROL PANEL WITH CUBE TECHNOLOGY

product benefits

FIRST LEVEL OF AUTOMATION
LOADING OPERATIONS IN REDUCED TIMES
POSSIBILITY OF CONFIGURING THE MACHINE IN LINE

DETAILS

PDS CARRIAGE
PDS CARRIAGE

PDS Carriage with dual pre-stretch rollers controlled via the control panel. Pre-stretch system is fixed at 250%. “Stretch Control” control activates the electromagnetic clutch positioned on the first roller.

PVS CARRIAGE
PVS CARRIAGE

The PVS Carriage with powered stretch system controlled by two independent motors. Stretch ratio adjustable from panel board from 150% up to 400%. Force to the load controlled by patented electronic device and adjustable from panel board.

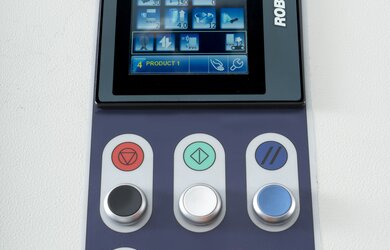

Touch screen control panel with Cube Technology
Touch screen control panel with Cube Technology

The control panel is the brain of Technoplat 2000, here lies the heart of the machine and technology Robopac ie Cube Technology. The graphical interface of the latest generation allows an easy and immediate use of all available functions.

overview

The high stiffness of the frame, along with the resistance and reliability of all rotating parts, controls and functions guarantees top efficiency and durability even in arsh working conditions.

Technoplat 2000 is ROBOPAC’s answer to industrial requirements for high productivity.

Technoplat 2000

option & data sheet

R-Connect

Innovation and connection for customer service: the tran­quillity of maximum productivity as a result of constant monitoring of proper machine operation.


Powerful, plug & play and user friendly, R-Connect is a “turnkey” system for the end-user: the main advantage is total “peace of mind”, which is absolute tranquillity regarding machine operation, which includes production performance verification and optimisation of all manage­ment costs.

In fact, the system minimises machine downtime and manages maintenance oper­ations better, also providing an immediate troubleshooting procedure, until the full and remote upgrade of the machine’s management software is completed.

R-Connect

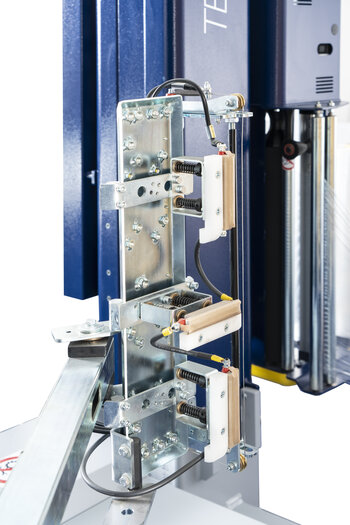

Sealer for film tail

Technoplat 2000 is equipped with a clamping unit, automatic cutting and spreading (std.) or welding (opt.).

This allows perfect automatic sealing of the film tail at the end of each cycle and adaptability to any product.

Sealer for film tail

Technical features

Turntable diameter mm

1800

Max load weight kg 1500
Turntable speed rpm 5÷15
Variable rolls speed m/min 8÷11 or 12÷15
Carriage up-down speed m/min

1,5÷5,5

Maximum product dimensions (LxW) mm

1200x1000

Maximum product height mm 2400 std. 2800/3100 opt.
Working height mm 400÷550
Film carriage type   PDS, PVS
Film stretch   adjustable from panel
Film pre-stretch

fixed 250% std (PDS), variable 150-400% (PVS)

Forklifting   front and rear
Power supply voltage V 230 V 1Ph + N
Power supply frequency Hz 50/60
Installed power kW

4 (PDS) 4,3 (PVS)

Max reel dimensions mm

500x300

Max reel weight kg 20
Film thickness μm 17÷35
