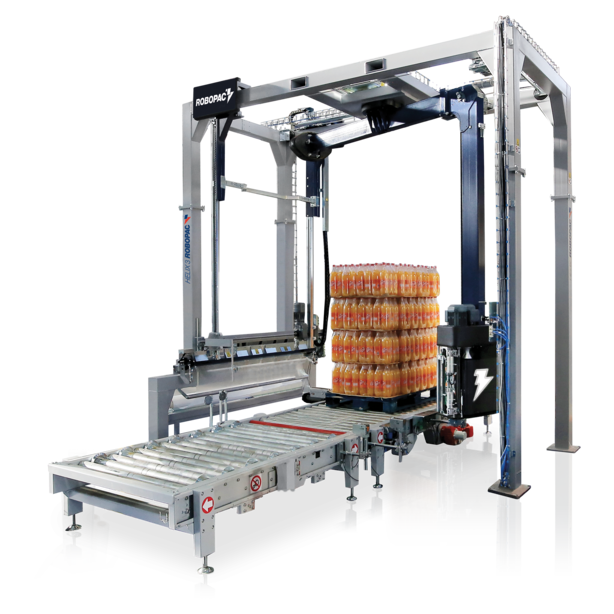

HELIX 3 EVO
Automatic machine with rotating arm for wrapping palletised loads with stretch film, particularly suitable for use in industries where high production rates are required and for light products, easily deformable and unstable.
Lower neckdown, maximum savings
Reduced total operative costs
Prepared for quick upgrades setup
QUICK AND FLEXIBLE SETUP
Quick and easy replacement of most components. Tool-free sealer parts changeover
1-minute worn-out parts replacement, minimized lube needs
Pre-assembled, ready-to-go for fast installation & ramp-up
Intuitive & easy-to-use interface
Smooth & neath design for cleaning operations
PGSM - FIXED PRE-STRETCH CARRIAGE
Single motorization allows pre-stretch at fixed values up to 350% and apply up to 12 containment force values on the pallet. Force to load adjustment through load cell. Stadard version 500 mm/20" film height; available 750 mm/30" as option
PINCERS CLAMP WITH PAD
Standard clamp equipped with a system for cutting the film through a hot wire. Also available double movement version, ideal for pallets of varying size
HELIX EVO ROTATING ARM WRAPPER Medium speed fully automatic rotating arm stretch wrapper
|Pallet dimensions min - max||mm||
400x600 - 1220x1220
|inches||16x24 - 48x48|
Max pallet dimensions XL version
|Maximum pallet height||mm||
|Standard power supply voltage and frequency||V - Hz||
400-415 ± 5% - 50 ± 1%
|Optional power supply voltage and frequency||V - Hz||
380-480 ± 5% - 60 ± 1%
|Compressed air pressure||Bar||
6 ± 1
|Film reel height||mm||
|Max reel diameter||mm||
Optional film reel height
