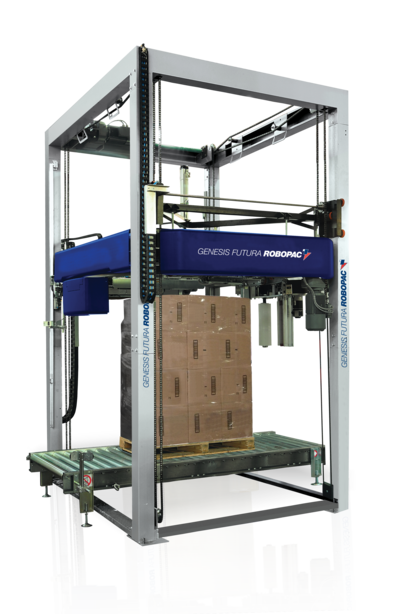

GENESIS FUTURA L Fully automatic rotary ring wrapper for big sized pallets
Automatic stretch wrapping machine with rotating ring for products with dimensions up to 1450x1450 mm (58x58 inches)
product benefits
STANDARD EQUIPMENTS

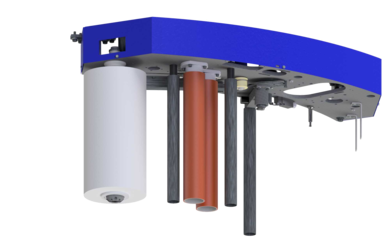

BSCSP - FIXED PRE-STRETCH CARRIAGE
Carriage with single motorization on-board with automatically recharged batteries to obtain film pre-stretching since the beginning of the wrapping process. Possibility to pre-stretch the stretch film at fixed values up to 300%.

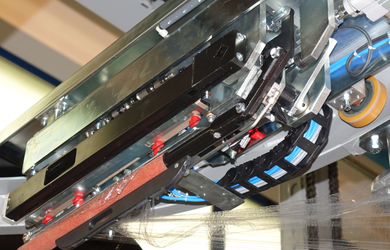

FUTURA CLAMP
Pneumatically driven clamp unit with hot wire film cutting which incorporates also the device for final sealing of the film tail on the contrast.
GENESIS FUTURA BIG PALLET SIZES BIG SIZED ROTATING RING STRETCH WRAPPER
option & data sheet
USCSP/2 - CUBE TECHNOLOGY L.1 - VARIABLE PRE-STRETCH CARRIAGE
It is possible to apply up to 12 containment force values on the pallet.
The adjustment of the containment force on the pallet is controlled by a reactive system based on the CUBE TECHNOLOGYTM Level 1.
NIP&TUCK CLAMP
Optional device for clamping, cutting and threading the film without sealer.
The last tail of the wrapping film is inserted into the second-last wrap.
VERTICAL PRESSURE PLATEN
Pallet retainer system during wrapping, mandatory with upper covering systems (Top Inside / Top Outside) or with particularly unstable loads.
TOP INSIDE COVER DEVICE
Automatic integrated in the structure system for covering the upper surface of the pallet and obtain protection against dust and water
ROPING DEVICE
Optional system to reduce the width of the film to a "rope" and ensure a more effective stabilisation of the load.
Available in 3 versions:
ROPING FROM BOTTOM
Reduce the film bandwidth from the bottom, creating a small rope that is applied at the level of wood axis of the pallet, while the remain part of film not roped is applied on product.
ROPING FROM TOP
Reduce the film bandwidth from top to bottom, to create a complete rope that is normally applied at the level of wood axis of the pallet.
The pallet is wrapped from the bottom up to its top with open band film. The film band is then narrowed from the top along its entire length to create a "rope" and applying the cord in a spiral down to the bottom. The final part of the cycle is carried out with open film.
ATTENTION: this operation involves the "cord" being placed on the product. If the product or its packaging is delicate they could be damaged.
ROPING WITH DOUBLE MOVEMENT
The cycle consists in wrapping the pallet from the bottom up to its top with film in open band to then narrow it from the top downwards forming a double "rope". The final part of the cycle is carried out with open film. The narrowing movements of the film band can be independent or synchronised with each other.
ATTENTION: this operation involves the "cord" being placed on the product. If the product or its packaging is delicate they could be damaged.
CENTER MACHINE PALLET LIFTER
Device to lift up the pallet in order to allow the wrapping of the wooden pallet.
It is normally used in combination with roping device to guarantee the maximum stability of the load
Available with pneumatic or hydraulic drive.
It is located under the central machine conveyor.
RCONNECT
Device for controlling, collecting, processing and filing large amounts of data from installed machines. Through a dedicated access-controlled portal, accessible from PCs or any portable device, you can connect to all machines equipped with the Rconnect system and monitor their performance 24/7.
- Monitor your performance
- Improve your efficiency
- Detect and inspect your line failures
- Remote assistance in private connection without need of company LAN
ARC - AUTOMATIC REEL CHANGER
Motorized unit to carry out, automatically and without any intervention of the operator, the ejection of the empty cardboard reel core and position the new reel of film for wrapping.
Available in the single ARC/1 with one spare reel and the ARC/2 version with two reels; compatible also with Top Inside.
The reel change units are positioned inside the perimeter protections, but outside the clearance of the ring and, therefore, it is possible to position the new reels in conditions of total safety without stopping the operation of the wrapping machine.
VCA - CORNER APPLICATOR
Automatic corner applicator device for the protection of the pallet corners.
It consists of vertical storages combined with vaccum grippers and moving hands.
Thanks to a special control system (ROBOPAC patent) the vacuum grippers are able to "locate" in a fully automatic way the corners of the pallet, without any manual setting or adjustment.
TPM KIT
LESS IS MORE
TPM kit means lower and preventive maintenance and higher productivity.
- Avoid production lines downtime
- Visual control of the machine status
Easy lubrication operations, red/green colored rings manometers and maintenance schedule directly on HMI with indicators and warnings.
SLIPSHEET FOLDING DEVICE
Device to allow the wrapping of lower flaps on slip-sheets with or without wooden pallet.
| Pallet dimensions min - max | mm |
500x600 - 1450x1450 |
inches | 20x24 - 58x58 | |
| Maximum pallet height | mm |
2000 |
inches | 80 |
| Standard power supply voltage and frequency | V - Hz |
400-415 ± 5% - 50 ± 1% |
| Optional power supply voltage and frequency | V - Hz |
380-480 ± 5% - 60 ± 1% |
| Compressed air pressure | Bar |
6 ± 1 |
| Film reel height | mm |
500 |
inches | 20 | |
| Max reel diameter | mm |
250 |
inches | 10 |
