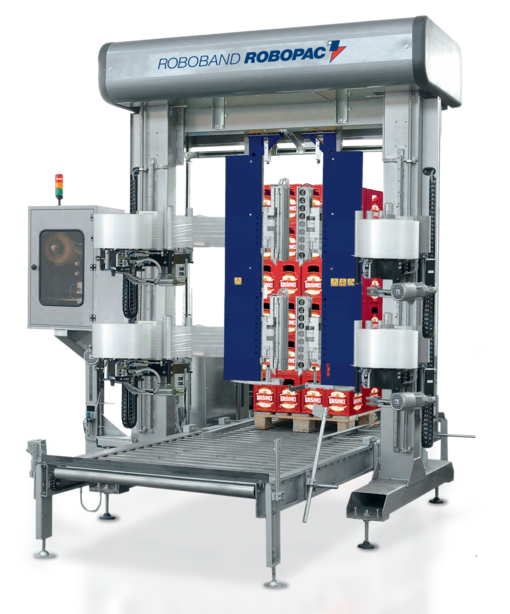

ROBOBAND 2VH Fully automatic horizontal bander with 2 film bands

ROBOBAND 2VH

Automatic end-of-line machine for the application of two bands of stretch film for labelling purposes.

ROBOBAND 2VH
OUTPUT CAPACITY UP TO 150 P/H
OUTPUT CAPACITY UP TO 150 P/H
TWO PAIR OF REELS
TWO PAIR OF REELS
ADJUSTABLE SEALING
ADJUSTABLE SEALING

product benefits

PARTIAL BANDING

Suited to applications where is needed to secure a stack of products not requiring an overall containment

PRE-LABELLING

Possibility to add a labelling machine for product identification

FULLY AUTOMATIC MOVEMENTS

HIgh precision movements controlled by PLC

QUICK AND FLEXIBLE SETUP

Easy fast parts changeover

STANDARD EQUIPMENTS

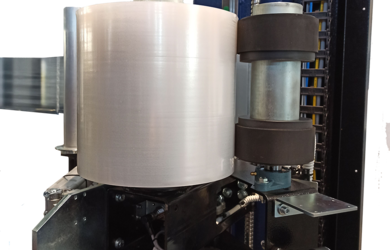

MFDS - PRE-STRETCH CARRIAGES
MFDS - PRE-STRETCH CARRIAGES

Motor-driven carriage controlled by clutch for unstable loads

overview

Fully automatic banding machine with 2 separate film reels, particularly suitable for applications where label application on the product is very challenging due to product shape.

ROBOBAND Fully automatic horizontal banding machine.

Pallet dimensions min - max mm

600x800 - 1300x1100

  inches 24x32 - 52x44
Maximum pallet height mm

2000

  inches 80
Height of the supply line mm 250 - 550   inches

10 - 22

Standard power supply voltage and frequency V - Hz

400-415 ± 5% - 50 ± 1%

Optional power supply voltage and frequency V - Hz

380-480 ± 5% - 60 ± 1%

Compressed air pressure Bar

6 ± 1

Film reel height mm

100 - 500

  inches 4 - 20
Max reel diameter mm

500

  inches 20
