Masterplat Plus LP

Masterplat Plus LP

Masterplat Plus LP is a turntable wrapping machine for wrapping products with stretch film in vertical. The operator can access from every side and load the machine with hand pallet truck via the suitable ramp or using a forklift truck. Masterplat Plus LP includes a thin turntable, only 30 mm thick, which allows to avoid frequent accidental bumps with the fork of the forklift truck and an easy loading. It is also suitable to save space thanks to the reduced dimensions of the new ramps and the quality of the new patented disc rolling system gives the machine a great reliability.

Masterplat Plus LP
3,5 inches colour graphic display and parameters selector by JOG.
250% fixed pre-stretch
EXCELLENT COMPROMISE BETWEEN ECONOMIC SAVINGS AND PERFORMANCE

product benefits

SAVE SPACE

Thanks to the reduced dimensions of the new ramps

LOAD FACILITY

Thanks to the reduced thickness of the turntable (30 mm)

HIGH FLEXIBILITY OF LOADING

Thanks to the possibility of access from every side

REDUCED THICKNESS

To avoid frequent accidental bumps with the forks of the forklift truck

DETAILS

FRD CARRIAGE
FRD CARRIAGE

Film carriage with mechanical brake manually adjustable to set the film tensioning. Brake engagement- release device to facilitate hooking the film to the base of the pallet.

PGS CARRIAGE
PGS CARRIAGE

The PGS film delivery device is equipped with a powered fixed gear (250%) pre-stretch system. A wide range of additional gear sets can also be purchased (150%-200-300%).

3,5 Inches colour graphic display
3,5 Inches colour graphic display

Parameter selection by jog: programming of the cycles in a simple and intuitive way

overview

Discover more on our app Robopac HMI

Try the Rotoplat, Masteplat Plus & Robot S7 user friendly control panel on your devices.





Download for Android

Download for iOS

LP turntable

option & data sheet

270° ramp

270° ramp for easy loading.

  • Save space thanks to the reduced dimensions
  • High flexibility of loading thanks to the possibility of access from every side
  • Reduced thickness to avoid frequent accidental bumps with the fork of the forklift truck
270° ramp

R-Connect

Innovation and connection for customer service: the tran­quillity of maximum productivity as a result of constant monitoring of proper machine operation.


Powerful, plug & play and user friendly, R-Connect is a “turnkey” system for the end-user: the main advantage is total “peace of mind”, which is absolute tranquillity regarding machine operation, which includes production performance verification and optimisation of all manage­ment costs.

In fact, the system minimises machine downtime and manages maintenance oper­ations better, also providing an immediate troubleshooting procedure, until the full and remote upgrade of the machine’s management software is completed.

R-Connect

Mechanical roping device

Film roping system useful to increase stabilization and containment of the product.

The reel descends from top to bottom thanks to a special electric motor present on the reel carriage.

The height of the film band and the enabling of roping are adjustable through the touch screen control panel.

Mechanical roping device

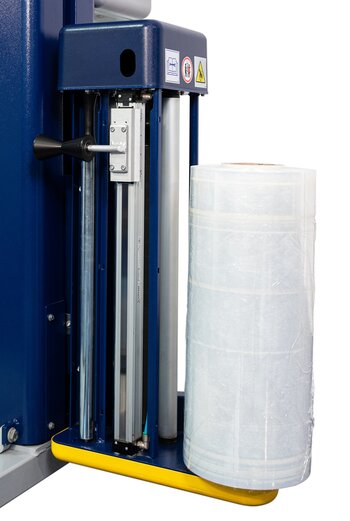

Roping device with 1 cylinder

Mechanism that, through pneumatic cylinder, creates a bead of film useful to increase the containment and stabilization of the pallet.

Roping device with 1 cylinder

Top presser

Top presser for the stabilization of light products.

Available in two versions: mechanical and pneumatic.

Top presser

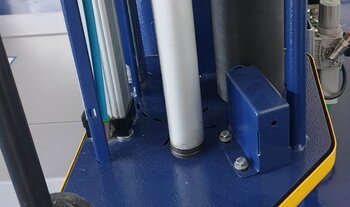

FILM AUTOMATIC CUTTING

The machine can be equipped with a film cutting device that increase the work efficiency in terms of time and makes the operator’s work easier.

FILM AUTOMATIC CUTTING

Technical features

Turntable diameter mm

1650

Max load weight kg 1200
Turntable speed rpm 5÷12
Carriage up-down speed m/min 1,4÷4
Maximum product dimensions (LxW) mm

1000x1200

Maximum product height mm 2200 std. 2400/2800/3100 opt.
Film carriage type   FRD, PGS
Film stretch   manual (FRD), adjustable from panel (PGS)
Film pre-stretch

n.a. (FRD), fixed 250% std. (PGS)

Forklifting   with frame supplied
Power supply voltage V 230 V 1Ph
Power supply frequency Hz 50/60
Installed power kW 1,5 (FRD) / 1,9 (PGS)
Max reel dimensions mm

500x300

Max reel weight kg 20
Film thickness μm 17÷35
