PRASMATIC TC 500/600 SHRINK

PRASMATIC TC 500/600 SHRINK

The TC 500/600 shrink-wrapping machines range is the best solution for medium to high-speed productions in end-line packaging. Depending on the machine model, the type of packaging and characteristics of the product, the packaging speed of the TC 500/600 ranges from 55 to 65 packages/min.

PRASMATIC TC 500/600 SHRINK
EXTREMELY ERGONOMIC, MODULAR, AND FLEXIBLE
OUTPUT CAPACITY: UP TO 65 PPM
AVAILABLE FOR DIFFERENT TYPES OF PACKAGING

PACKAGING MODELS

TC 500/600 C

The TC machines with shrink-wrapping technology are available in the following versions:

TC 500: up to 55 packs/minute

TC 600: up to 65 packs/minute

Depending on the set-up, this series can realise all the classic secondary packaging solutions with film.

PRASMATIC
TC C

PRASMATIC
TC CF

PRASMATIC
TC CW

packs with film only

packs with flat pad and film

packs with tray and film

product benefits

ERGONOMIC

Extremely ergonomic design.

FLEXIBLE

Maximum flexibility and efficiency.

ADAPTABLE

Easily adaptable to a wide range of production lines.

HMI

Userfriendly and wide touchscreen panel.

SAFE

Our top-brand brushless servomotor drives guarantee the highest safety and quality.

EASY MAINTENANCE

The led lighting and the sliding doors facilitate the access for cleaning and maintenance operations.

STANDARD EQUIPMENTS

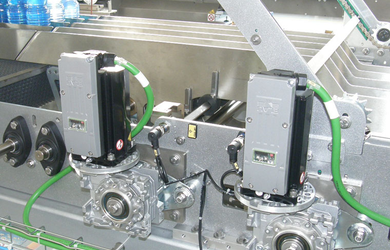

Continuous Product Separation
Continuous Product Separation

Separation system with electronic control for medium and high speed. Product separation is carried out through a double pair of teeth, with infeed between the products from the bottom. It is easy to make adjustments during format changes.

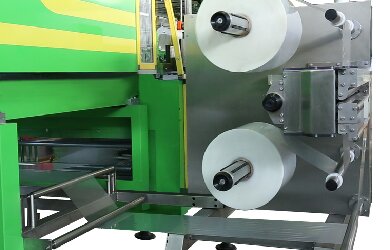

Film Reels
Film Reels

Various film reel positioning solutions are available, the ergonomics are particularly well-designed. Better access for format change operations and reel sealing means excellent man-machine interaction.

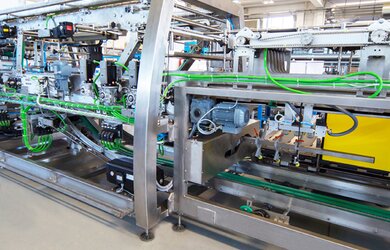

Machine Frame
Machine Frame

Completely revisited, it is designed to offer multiple modular solutions based on machine configuration. The new frame offers better access to all of the units to operate the machine, change formats and perform maintenance.

overview

Depending on the set-up, this machine series can realise all the classic secondary packaging solutions with film.

PRASMATIC TC 500/600 SHRINK WRAPPING

option & data sheet

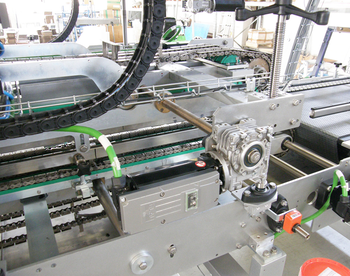

AUTOMATIC FORMAT CHANGE

For models with automatic format change, switching to the new format is carried out electronically through brushless motors, in most cases there is no need for tools or for the machine to be manned by the operator. Format change operations are carried out simply from the operator panel.

AUTOMATIC FORMAT CHANGE

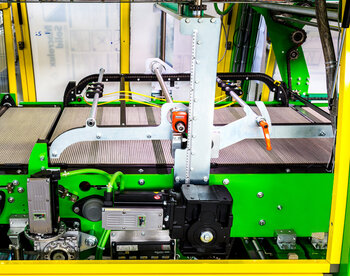

PRODUCT WRAPPING

The implemented technical solutions offer great flexibility and high dimensional excursion of the product during winding from one format to another. This unit boasts multiple configuration solutions.

PRODUCT WRAPPING

REMOVABLE FILM UNIT

The system offers easy access to the film unit, for quick and efficient maintenance. This application is particularly suited for liquid product sectors, such as dairy and beverage, where the primary packaging may break, possibly soiling the film.

REMOVABLE FILM UNIT

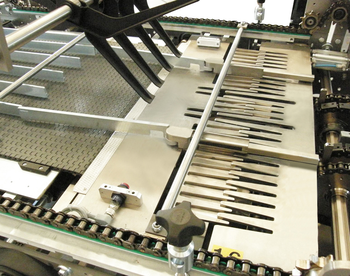

RETRACTABLE COLLATING PLATE

This solution offers high flexibility for the range of formats that can be produced, it also offers an excellent compromise when switching from tray packaging to packs with heat-shrink film only, and vice versa. The pneumatically-actuated surface offers the possibility of producing trays with high edges, it is particularly suited for the production of full height trays.

RETRACTABLE COLLATING PLATE

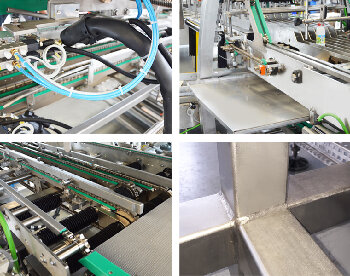

WASH DOWN EXECUTION

The Wash down application is particularly dedicated to all those sectors that require high hygiene quality standards, especially the dairy sector.

WASH DOWN EXECUTION

Automatic reel change

The system seals and cuts the film in a fully-automated fashion without any operator intervention, this option makes it possible to continue without stopping film unwinding and the production cycle. The reel configuration is set up by the operator, through simple manual procedures.

 Automatic reel change

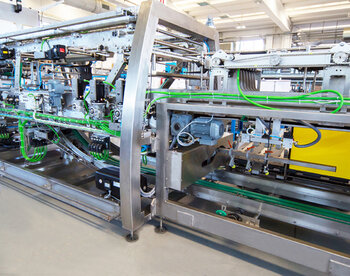

Partial or full stainless steel

According to the customer's needs it possible to have a partial or a total stainless steel execution for the machine frame.

Partial or full stainless steel

Easy film

External film group for reel loading that grants better access for format change operations and reel sealing means excellent man-machine interaction. The external reels option also offers automatic reel-change.

Easy film

STANDARD TECHNICAL FEATURES
