Superbox 60 HD
Case Sealer & Case Erectors

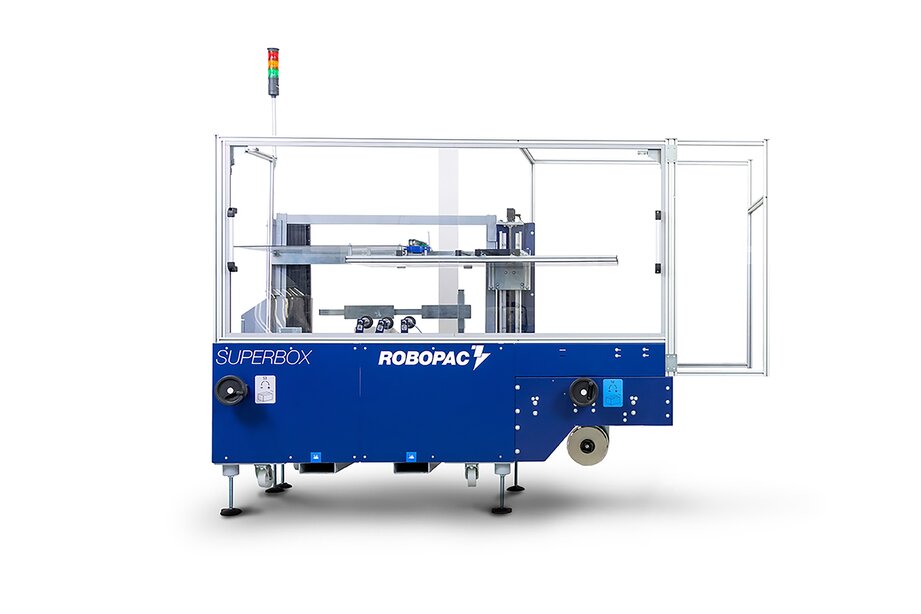

Superbox 60 HD Automatic case erector for cardboard boxes

Superbox 60 HD

Robopac presents an automatic case erector with a high output and a long lifespan. The Superbox 60 HD case erector retrieves the cardboard blanks, opens, folds and forms the boxes and then seals the bottom with tape.

read more
contact us Watch the video
Superbox 60 HD
EASY TO USE THANKS TO PANEL WITH ICONS
R-CONNECT

product benefits

COMPACT AND FAST

Thanks to the reduced size and high productivity up to 12 boxes/minute

EASY TO USE

Thanks to the new intuitive color graphic display

FAST SIZE CHANGE

Thanks to adjustments by handwheels that guarantee precision and repeatability

STURDINESS AND SAFETY

Thanks to the quality of the materials adopted and the safety devices that protect the operator from any risk

DETAILS

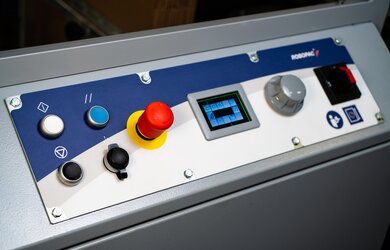

Control panel

New HMI with jog parameters selector and 3,5 inches colour display

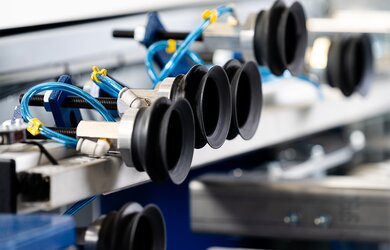

SUCTION CUPS UNIT

Format changeovers are easily done using 5 handwheels and adjusting the strikes in the blanks magazine and the position of the suction caps.

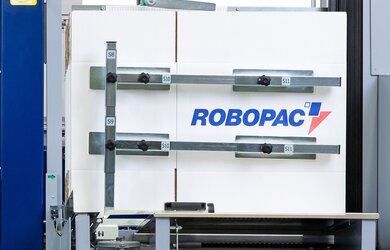

STORAGE UNIT

The machine is composed of a blanks magazine, a section where the cartons are opened, and a discharge roller where the cartons are taped at the base.

overview

Discover more on our app Robopac MyCase

Enter your box dimensions and configure your taping machine.






Go to the app

Download for Android

Download for iOS

Superbox 60 HD

option & data sheet

R-Connect

Innovation and connection for customer service: the tran­quillity of maximum productivity as a result of constant monitoring of proper machine operation.


Powerful, plug & play and user friendly, R-Connect is a “turnkey” system for the end-user: the main advantage is total “peace of mind”, which is absolute tranquillity regarding machine operation, which includes production performance verification and optimisation of all manage­ment costs.

In fact, the system minimises machine downtime and manages maintenance oper­ations better, also providing an immediate troubleshooting procedure, until the full and remote upgrade of the machine’s management software is completed.

R-Connect

HD taping head

TAPING HEAD SUITABLE TO ALL ROBOTAPE TAPING MACHINES RANGE

  • HEAVY DUTY DESIGN for highest productivity

  • HIGH PERFORMANCE soft touch on boxes

  • QUALITY new axial locking system of the internal core

  • HIGH FLEXIBILITY 1 spindle, 3 tape widths

  • PROFESSIONAL easy to set and low noise



HD taping head

idler rollers conveyors and extensible conveyors

Wide range of accessories for taping lines: idler rollers conveyors and extensible conveyors.

idler rollers conveyors and extensible conveyors

Motorized conveyor

Motorized belt product handling conveyor, specific for those products that require a uniform support surface

Motorized conveyor

Technical tables downloads

Technical features

Box storage capacity   50-60 std. 100-120 opt.
Height conveyor belt mm 50
Infeed speed m/min 22
Tape width mm

50 - 75
Bottom taping head   opt
Minimum boxes dimensions (LxWxH) mm 200x170x100
Maximum boxes dimensions (LxWxH) mm 600x410x500
Power supply voltage V 400 V 3 Ph + N + PE
Power supply frequency Hz 50
Installed power kW 0,6
Air consumption Nl/min 350
Working pressure bar

6
