Stretch wrapping

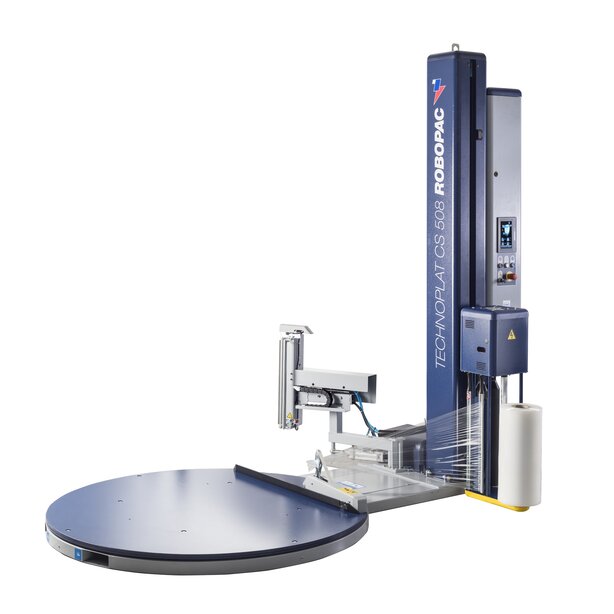

Technoplat CS/CW

Technoplat CS/CW

Technoplat CS and CW are automatic wrapping machines and represent the innovative solution to fully automatic pallet wrapping. The machine is equipped with the Film Clamp and Cut unit with spreader, in the CS version, and welder, in the CW version, that ensures the film tail is attached, cut, spread or welder and perfectly adhered to the pallet.

Technoplat CS/CW
automatic film clamping, cutting and welding or spreading
pre-stretch up to 400%
EASY TO USE TOUCH SCREEN CONTROL PANEL WITH CUBE TECHNOLOGY

Available Models

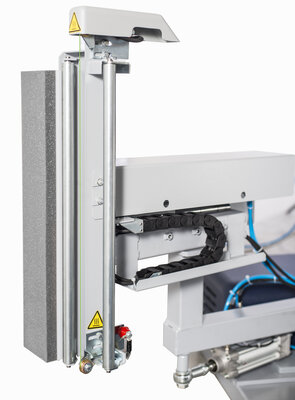

Technoplat CS

Automatic clamping, cutting and film spreading system.

Technoplat  CS

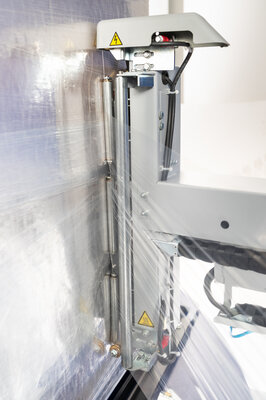

Technoplat CW

Automatic clamping, cutting and film welding system.

Technoplat  CW

product benefits

CAN BE STARTED REMOTELY
SIGNIFICANT SAVINGS IN WRAPPING TIME
MACHINE WITH PATENTED CLAMPING SYSTEM
INDEPENDENT CLAMPING, CUTTING AND FILM SPREADING OR WELDING SYSTEM

DETAILS

FR CARRIAGE
FR CARRIAGE

Film carriage with electromagnetic powder brake on return roller, stretch tension adjustable from control panel.

PDS CARRIAGE
PDS CARRIAGE

Pre-stretch system is fixed at 250%. “Stretch Control” control activates the electromagnetic clutch positioned on the first roller.

PVS CARRIAGE
PVS CARRIAGE

PVS Carriage with powered stretch system controlled by two independent motors. Stretch ratio adjustable from panel board from 150% up to 400%.

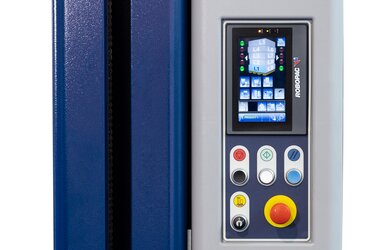

7'' TOUCH SCREEN CONTROL PANEL
7'' TOUCH SCREEN CONTROL PANEL

The control panel is the brain of Technoplat, here lies the heart of the machine and technology Robopac ie Cube Technology.

Technoplat CS/CW

option & data sheet

R-Connect

Innovation and connection for customer service: the tran­quillity of maximum productivity as a result of constant monitoring of proper machine operation.


Powerful, plug & play and user friendly, R-Connect is a “turnkey” system for the end-user: the main advantage is total “peace of mind”, which is absolute tranquillity regarding machine operation, which includes production performance verification and optimisation of all manage­ment costs.

In fact, the system minimises machine downtime and manages maintenance oper­ations better, also providing an immediate troubleshooting procedure, until the full and remote upgrade of the machine’s management software is completed.

R-Connect

ramps

Ramps for easy loading with hand pallet truck

ramps

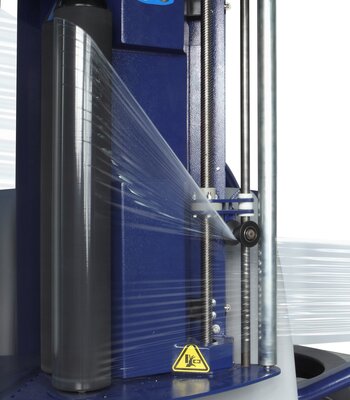

Mechanical roping device

Film roping system useful to increase stabilization and containment of the product.

The reel descends from top to bottom thanks to a special electric motor present on the reel carriage.

The height of the film band and the enabling of roping are adjustable through the touch screen control panel.

Mechanical roping device

Weighing kit

Weighing frame kit for turntable machines.



Max load weight

kg 1200 std. 2000 opt. (Ø1500) / 2000 std. 2500 opt. (Ø1650-Ø1800)
Sensibility

±0,2

Integrated printer

  opt.
Compatibility   Ecoplat Plus (Ø1500) / Ecoplat Plus, Masterplat Plus, Rotoplat, Technoplat CS/CW (Ø1650) / Masterplat Plus, Rotoplat, Technoplat CS/CW (Ø1800)

Power supply voltage

V

110-240 V (1Ph)

Power supply frequency

Hz 50/60



Weighing kit

Technical features

Turntable diameter mm

1650 std. 1800 opt.

Max load weight kg 2000 std. 2500 opt.
Turntable speed rpm 5÷12
Carriage up-down speed m/min

1,5÷5,5

Maximum product dimensions (LxW) mm

1000x1200 std. 1200x1200 opt.

Maximum product height mm 2200 std. 2400/2800/3100 opt.
Film carriage type   FR, PDS, PVS
Film stretch   adjustable from panel
Film pre-stretch

n.a. (FR), fixed 250% std (PDS), variable 150-400% (PVS)

Forklifting   front and rear
Power supply voltage V 230 V 1Ph
Power supply frequency Hz 50/60
Installed power kW

2,1÷2,9

Max reel dimensions mm

500x300

Max reel weight kg 20
Film thickness μm 17÷35
